Digital Data Sheet
31000-04
Quad Band Block Up-Converter
A quad band block up-converter from the EM Research QBUC Series, delivering 4-band. Like every EMR model, the 31000-04 is configurable to your exact requirements.
Series Features
- Connectorized Package
- Wide choice of frequency ranges
- Quadruple Band
- Four digitally selectable Ku, K, Ka Band frequency ranges available
- Integrated filters
- Gain control
- Low power consumption
- Low phase noise
- Low spurs
- CAN, RS-232, I2C, SPI and RS485 Control
- Internal / External references
Applied Industries
Aerospace · Military · Satcom
Frequency
| Band | Low | High |
|---|---|---|
| Band A | 27.5 GHz | 28.5 GHz |
| Band B | 28.25 GHz | 29.25 GHz |
| Band C | 29 GHz | 30 GHz |
| Band D | 30 GHz | 31 GHz |
Electrical Specifications
| Power Out | +10 dBm |
|---|---|
| Harmonics | -45 dBc TYP |

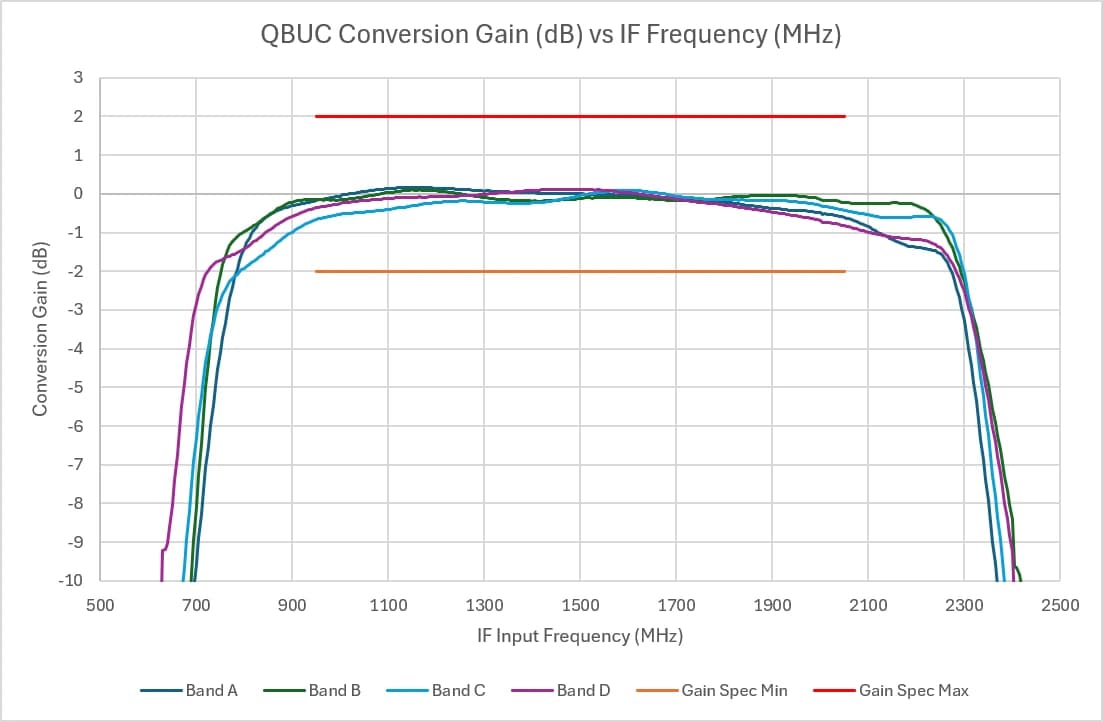

| Gain | 0 ±2 dB |
| VCC | 12 VDC ±0.5V |
| ICC | 800 mA |
Phase Noise
| PN @ 1 kHz | -78 dBc/Hz |
|---|---|
| PN @ 10 kHz | -88 dBc/Hz |
| PN @ 100 kHz | -98 dBc/Hz |
Reference
| Reference | 100 MHz |
|---|
Environmental
| Temp Range | -20°C to +70°C, Case |
|---|
Mechanical
| Package | 6.6” x 2.5” x .6” |
|---|
All specifications are typical unless otherwise specified and subject to change without notice. All models are configurable — contact EM Research for custom frequencies, packages, and screening.
