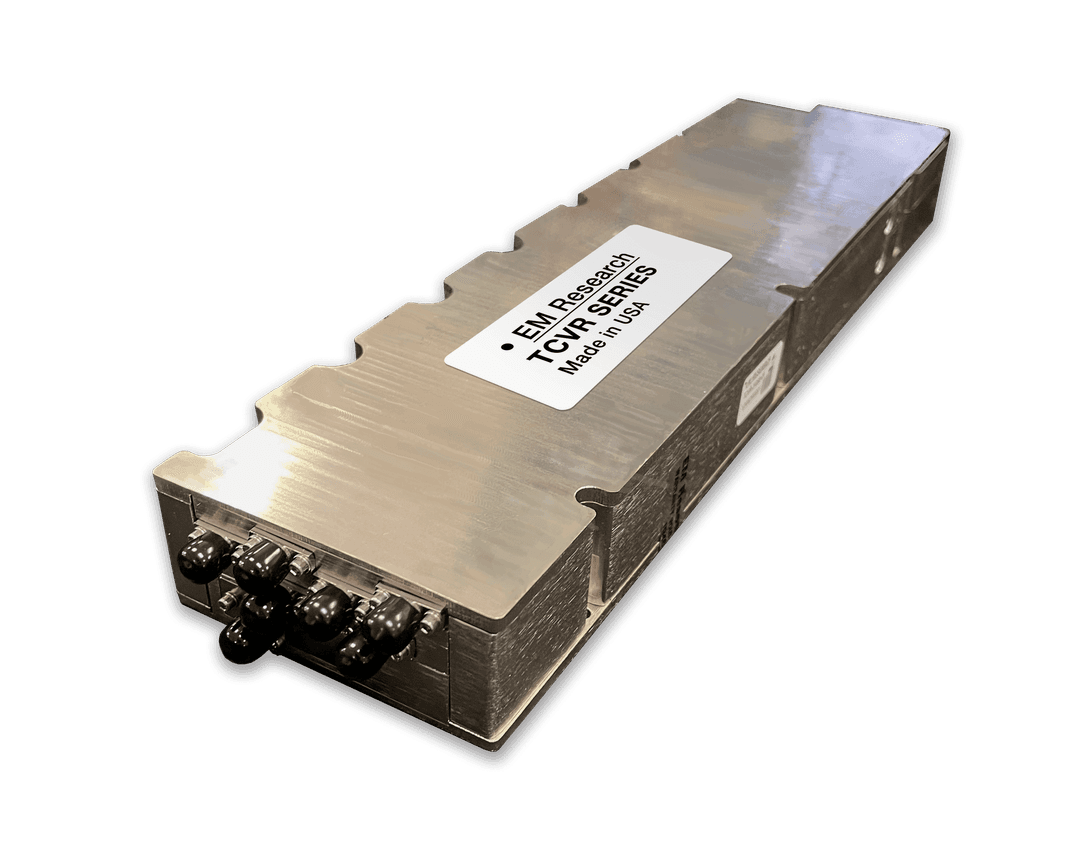

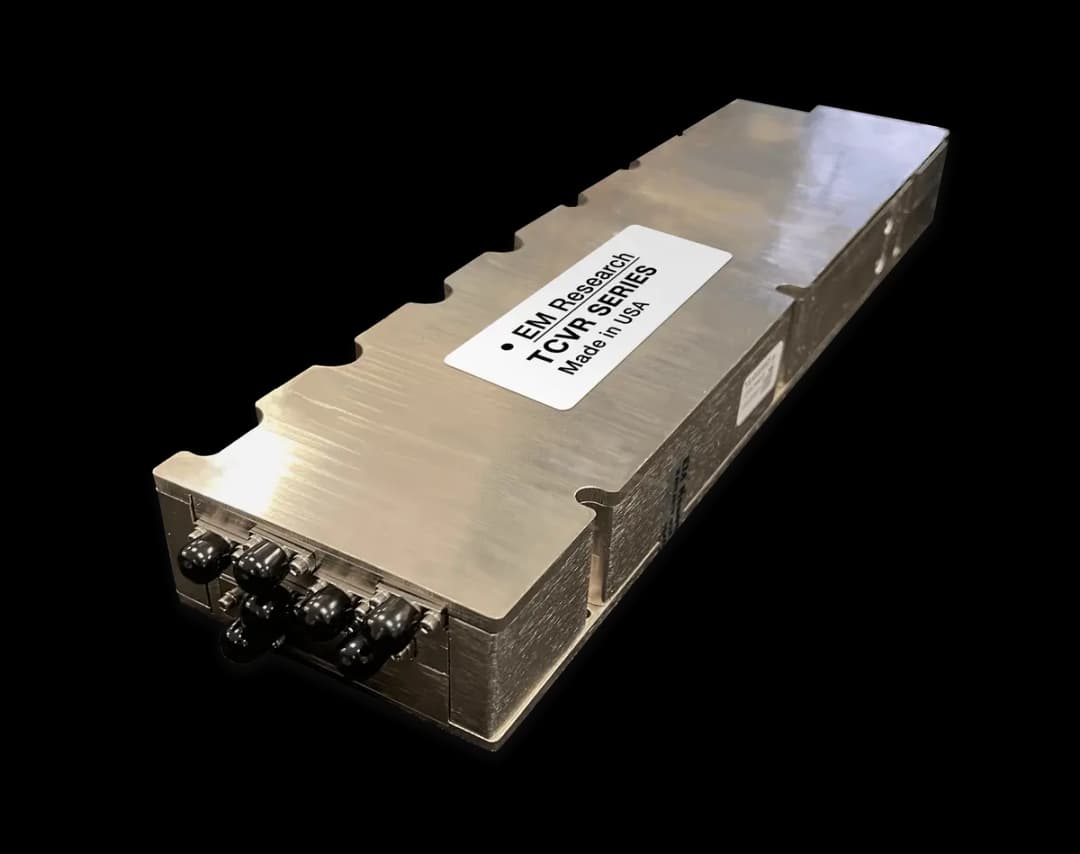

TCVR Series
Transceiver
EM Research's TCVR Series transceivers combine transmit and receive paths in a single connectorized package. Configure a model to transmit in Ka-band and receive in K-band, transmit and receive together in Ku-band, or combine both frequency plans in one unit — X-band options are also available.
TCVR Series Options:
- X, Ku, K, and Ka-Bands Available
- Low SWaP connectorized package 11.0” x 3.0” x 1.25”
- Internal low phase noise LO synthesizers
- Excellent linearity
- Instantaneous band width up to 1200 MHz
- IF range configurable within L-Band (950-2150 MHz)
- RF range configurable to 33 GHz
- Internal image and LO blocking filters
- Single or multiple switchable bands are configurable
- Fixed or programmable gain
- IF power detector for customer signal level monitoring
- IF + RF power detectors for gain monitoring
- Internal temperature sensor readout for monitoring
- LO reference can be external or internal
- External LO reference can be multiplexed on IF or on independent SMA connector
- Hermetic sealing
Industries: Aerospace, Communications, Satcom
Quick Answers
For RF Engineers
- What frequency range does the TCVR Series cover?
- The TCVR Series covers 10.7 GHz to 31 GHz.
- What package does the TCVR Series come in?
- The TCVR Series Transceiver comes in a 11.0” x 3.0” x 1.25” package.
- What is the IF Range of the TCVR Series?
- TCVR Series IF Range: 950 to 2450 MHz.
- What is the Phase Noise of the TCVR Series?
- TCVR Series Phase Noise: -100 dBc/Hz @ 100 kHz.
- What is the Gain of the TCVR Series?
- TCVR Series Gain: Adjustable.
- What is the Harmonics of the TCVR Series?
- TCVR Series Harmonics: -40 to -45 dBc, typ (model-dependent).
For Program Managers
- What industries use the TCVR Series?
- The TCVR Series is used in Aerospace, Communications, Satcom applications. All models are configurable to specific requirements.
- Where is the TCVR Series designed and manufactured?
- The TCVR Series is designed and manufactured in the USA by EM Research in Reno, Nevada.
- Can the TCVR Series be customized for a specific program?
- Yes. All TCVR Series models are configurable to program-specific requirements, including frequency, packaging, and ruggedization.
- How do I request a quote or configuration for the TCVR Series?
- Submit a request through the TCVR Series configuration form and EM Research will respond within 1 business day.
Series Specifications
| Frequency Range | 10.7 GHz to 31 GHz |
|---|---|
| IF Range | 950 to 2450 MHz |
| Phase Noise | -100 dBc/Hz @ 100 kHz |
| Gain | Adjustable |
| Harmonics | -40 to -45 dBc, typ (model-dependent) |
| Spurs | -60 to -65 dBc, max (model-dependent) |
| Communication Protocol | RS232, RS485, CAN, I2C |
| Supply Voltage | +12 VDC |
| Temperature Range | -20°C to +70°C, Case (model-dependent — see table) |
| Package | 11.0” x 3.0” x 1.25” |
Models — all models are configurable
| Model ID | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TCVR-14500-XX | Receive 10.7 GHzTransmit 13.75 GHz | Receive 12.75 GHzTransmit 14.5 GHz | Adjustable | -100 | -40 | -60 | +12 VDC | 2500 | RS232 | 10 | -20°C to +60°C, Case | QuoteSpec Sheet |
| TCVR-31000-XY | Receive (Band 1) 10.7 GHzReceive (Band 2) 17.7 GHzTransmit (Band 1) 13.75 GHzTransmit (Band 2) 27.5 GHz | Receive (Band 1) 12.75 GHzReceive (Band 2) 21.2 GHzTransmit (Band 1) 14.5 GHzTransmit (Band 2) 31 GHz | Adjustable | -100 | -40 | -60 | +12 VDC | 4000 | RS485 | 100 | -30°C to +70°C, Case | QuoteSpec Sheet |
| TCVR-31000-XX | Receive 17.7 GHzTransmit 27.5 GHz | Receive 21.2 GHzTransmit 31 GHz | Adjustable | -100 | -45 | -65 | +12 VDC | 2500 | RS485 | 50 | -30°C to +70°C, Case | QuoteSpec Sheet |
- Frequency
- 2 bands
- Gain
- Adjustable dB
- PN @ 100 kHz
- -100 dBc/Hz
- Harmonics
- -40 dBc
- Spurs
- -60 dBc
- VCC
- +12 VDC V
- ICC
- 2500 mA
- Comms Protocol
- RS232
- Reference
- 10 MHz
- Temp Range
- -20°C to +60°C, Case
- Frequency
- 4 bands
- Gain
- Adjustable dB
- PN @ 100 kHz
- -100 dBc/Hz
- Harmonics
- -40 dBc
- Spurs
- -60 dBc
- VCC
- +12 VDC V
- ICC
- 4000 mA
- Comms Protocol
- RS485
- Reference
- 100 MHz
- Temp Range
- -30°C to +70°C, Case
- Frequency
- 2 bands
- Gain
- Adjustable dB
- PN @ 100 kHz
- -100 dBc/Hz
- Harmonics
- -45 dBc
- Spurs
- -65 dBc
- VCC
- +12 VDC V
- ICC
- 2500 mA
- Comms Protocol
- RS485
- Reference
- 50 MHz
- Temp Range
- -30°C to +70°C, Case
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
