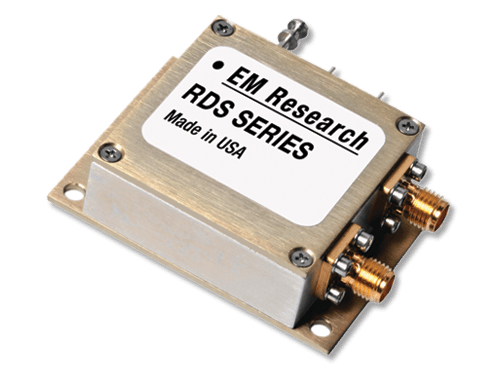

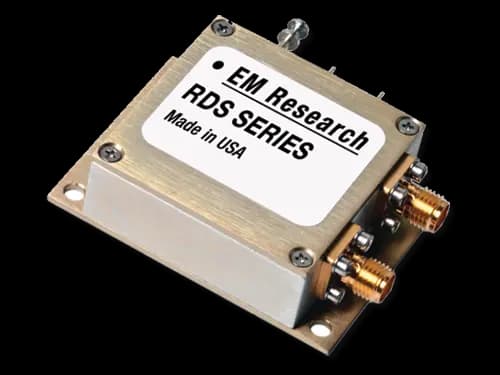

Phase-Locked Crystal Oscillator
- Frequency range
- 5 MHz – 1.3 GHz
- Package size
- 1.5” x 1.5” x 0.6”
- Connectorized Package
View Series →4 models
Products
Frequency Generation
RDS Series
Reference Oscillator
- Connectorized Package
- Internal/External Reference Detect Switch
- Standard Internal TCXO (±2.5 ppm)
- Optional Internal OCXO (±90 ppb)
Industries: Communications, Laboratory
Quick Answers
- Frequency range
- 10 MHz to 100 MHz
- Package
- 1.5” x 1.5” x 0.6” — Connectorized Package
- Typical use
- Communications, Laboratory applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 10 MHz to 100 MHz |
|---|---|
| Bandwidth | Fixed |
| Output | up to +10 dBm |
| Phase Noise | <-155 dBc/Hz @ 1 KHz offset (Fout = 10 MHz) |
| Harmonics | <-15 dBc |
| Spurs | <-60 dBc |
| Supply Voltage | +5, +8, +12 VDC Current ≤200 mA |
| Internal Reference | ≤2.5 ppm, Stability (TCXO), ≤±90 ppb, Stability (OCXO) |
| External Reference | 10 to 100 MHz |
| Package Size | 1.5” x 1.5” x 0.6” |
Models — all models are configurable
| Model ID | ||||||||
|---|---|---|---|---|---|---|---|---|
| RDS-10-40 | 10 MHz | +12 | 10 | -140 | -145 | +12 | 150 | QuoteSpec Sheet |
| RDS-50-01 | 50 MHz | +20 | 10 | -130 | -140 | +5 | 200 | QuoteSpec Sheet |
| RDS-100-07 | 100 MHz | +13 | 10 | -135 | -145 | +5 | 200 | QuoteSpec Sheet |
| RDS-100-08 | 100 MHz | +10 | 10 | -140 | -150 | +5 | 250 | QuoteSpec Sheet |
- Frequency
- 10 MHz
- Power Out
- +12 dBm
- Reference
- 10 MHz
- PN @ 1 kHz
- -140 dBc/Hz
- PN @ 10 kHz
- -145 dBc/Hz
- VCC
- +12 V
- ICC
- 150 mA
- Frequency
- 50 MHz
- Power Out
- +20 dBm
- Reference
- 10 MHz
- PN @ 1 kHz
- -130 dBc/Hz
- PN @ 10 kHz
- -140 dBc/Hz
- VCC
- +5 V
- ICC
- 200 mA
- Frequency
- 100 MHz
- Power Out
- +13 dBm
- Reference
- 10 MHz
- PN @ 1 kHz
- -135 dBc/Hz
- PN @ 10 kHz
- -145 dBc/Hz
- VCC
- +5 V
- ICC
- 200 mA
- Frequency
- 100 MHz
- Power Out
- +10 dBm
- Reference
- 10 MHz
- PN @ 1 kHz
- -140 dBc/Hz
- PN @ 10 kHz
- -150 dBc/Hz
- VCC
- +5 V
- ICC
- 250 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
