Products
Signal Conversion

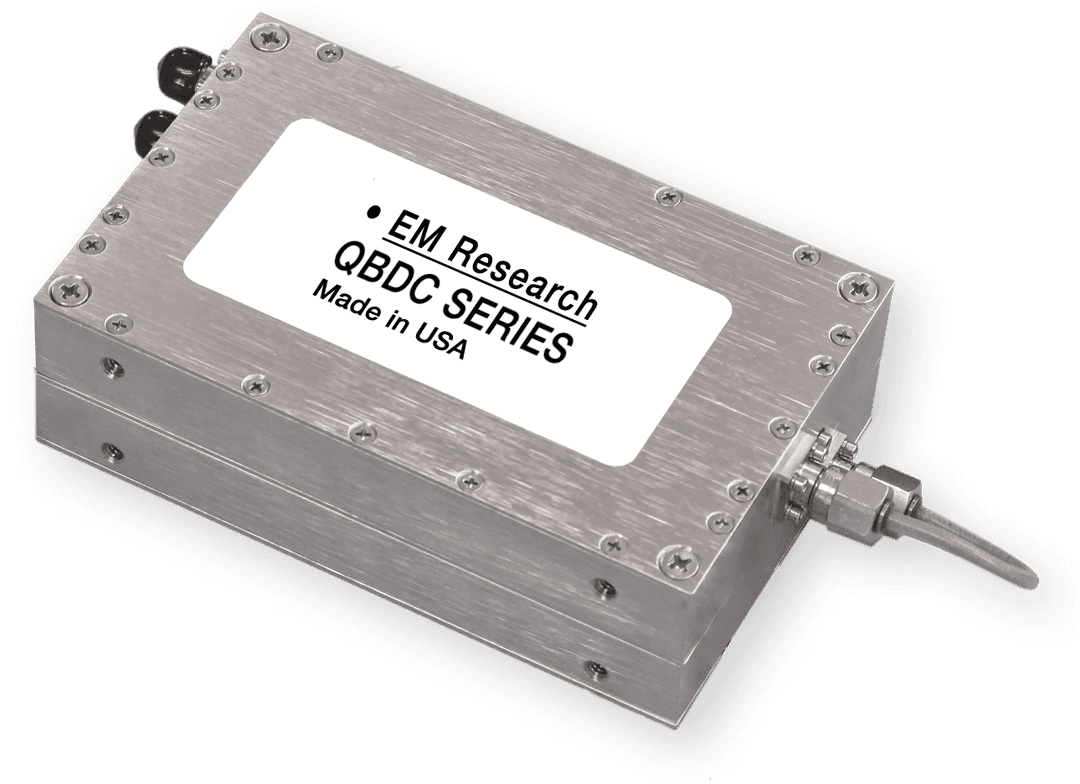

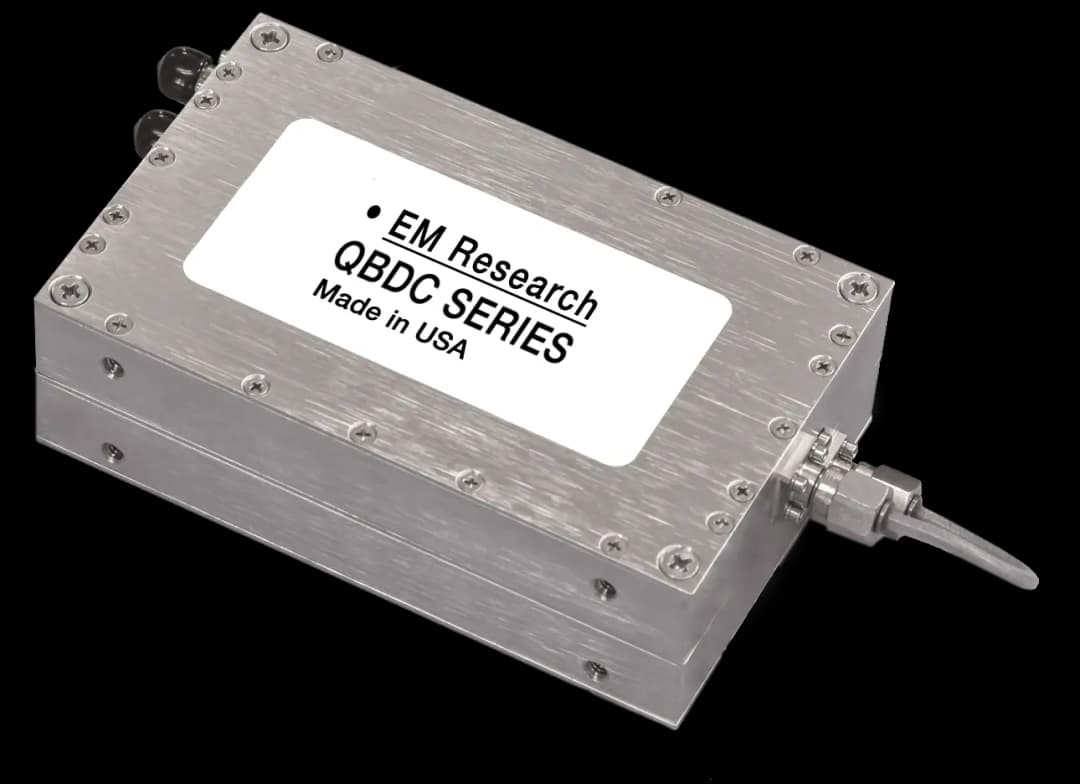

QBDC Series
Quad Band Block Down Converter
- Connectorized Package
- Compact, Rugged Design
- Quadruple Band
- Custom Designs Available
- Internal Low-Noise LO
Industries: Aerospace, Military, Satcom
Quick Answers
- Frequency range
- 17.7 GHz to 22.2 GHz across 4 bands
- Package
- 6.70” x 2.50” x 0.40” — Connectorized Package
- Typical use
- Aerospace, Military, Satcom applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 17.7 GHz to 22.2 GHz |
|---|---|
| Output | 950-2150 MHz |
| Phase Noise | <-70 dBc/Hz @ 10 KHz Offset, MAX |
| Conversion Gain | +20 dB, ±2.0 dB @ IF=1550 MHz |
| Harmonics | <-40 dBc TYP, <-35 dBc MAX (-10 dBm, signal out) |
| Spurs | <-55 dBc, MAX |
| Input Level | 0 dBm MAX, No Damage |
| Supply Voltage | +12 VDC, ±0.25V |
| Temperature Range | 0 °C to +50 °C, (Housing Surface) |
| Internal Reference | Optional |
| Stability | Same as Reference |
| External Reference | 10 MHz |
| Package Size | 6.70” x 2.50” x 0.40” |
Models — all models are configurable
| Model ID | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QBDC-22200-02 | Band A 17.7 GHzBand B 18.8 GHzBand C 19.9 GHzBand D 21 GHz | Band A 18.9 GHzBand B 20 GHzBand C 21.1 GHzBand D 22.2 GHz | 0 min | -45 typ | 100 MHz | -70 | -80 | -90 | +12 VDC, ±0.25V | TBD on spec | +20 dB, ±2.0 dB @ IF=1515 MHz | 0 °C to +50 °C, (Housing Surface) | QuoteSpec Sheet |
- Frequency
- 4 bands
- Power Out
- 0 min dBm
- Harmonics
- -45 typ dBc
- Reference
- 100 MHz MHz
- PN @ 1 kHz
- -70 dBc/Hz
- PN @ 10 kHz
- -80 dBc/Hz
- PN @ 100 kHz
- -90 dBc/Hz
- VCC
- +12 VDC, ±0.25V V
- ICC
- TBD on spec mA
- Gain
- +20 dB, ±2.0 dB @ IF=1515 MHz dB
- Temp Range
- 0 °C to +50 °C, (Housing Surface)
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
