Dual Band Block Down Converter
- Frequency range
- 14.4 GHz – 15.35 GHz
- Package size
- 6.70” x 2.50” x 0.40”
- Connectorized Package
- Compact, Rugged Design
- Dual Band
View Series →3 models
Products
Signal Conversion
LNB Series

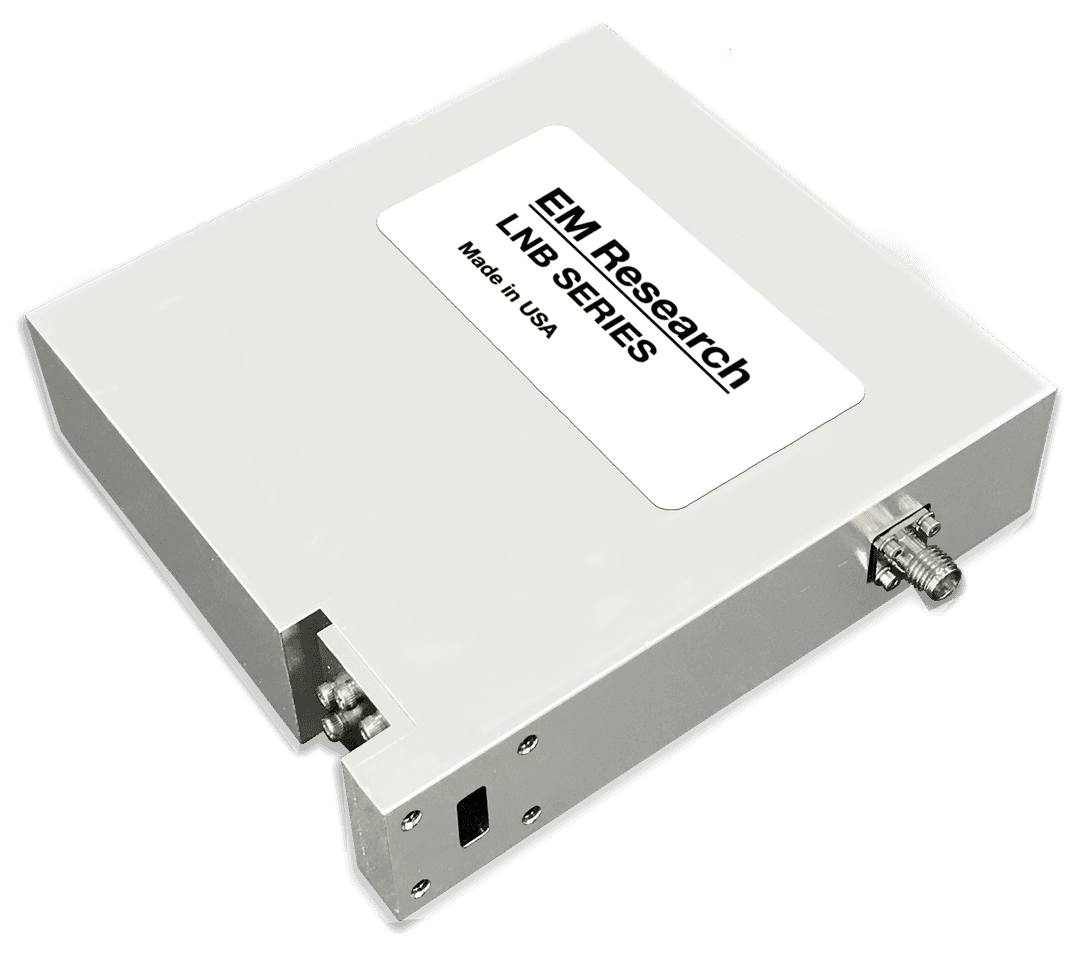

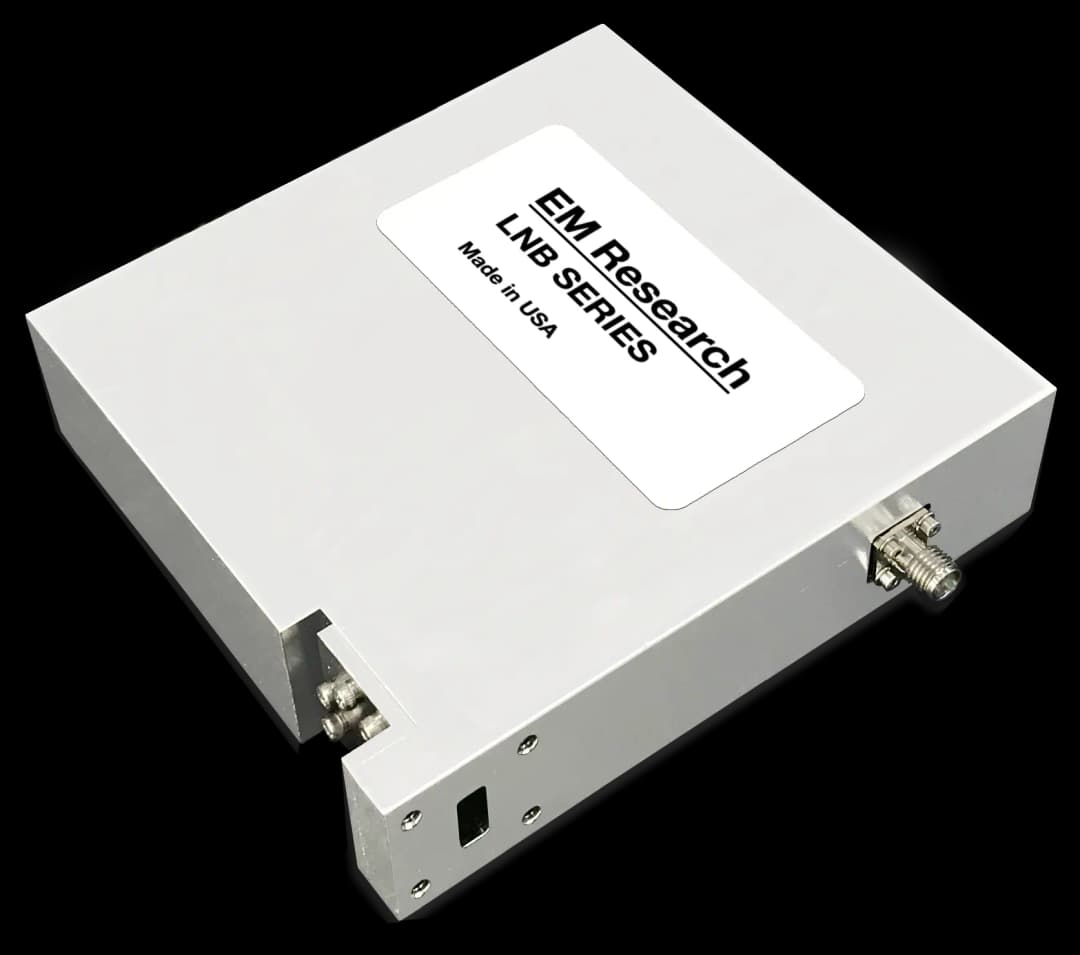

Low Noise Block Down Converter
- State of the Art noise figure
- Multi-band capabilities
- Vibration tolerant
- Low Phase Noise
- Multiple, voltage selectable frequency ranges
- Hermetic Seal
- 10 MHz or 50 MHz reference
Industries: Aerospace, Satcom
Quick Answers
- Frequency range
- 10.7 GHz to 20.2 GHz
- Typical use
- Aerospace, Satcom applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 10.7 GHz to 20.2 GHz |
|---|
Models — all models are configurable
| Model ID | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| LNB-12750-02 | Band 1 10.7 GHzBand 2 11.7 GHz | Band 1 11.7 GHzBand 2 12.75 GHz | 10 | -85 | -90 | -95 | 11.5 - 19 | 550 | QuoteSpec Sheet |
| LNB-20200-10 | Band 1 17.7 GHzBand 2 18.45 GHzBand 3 19.2 GHz | Band 1 18.7 GHzBand 2 19.45 GHzBand 3 20.2 GHz | 50 | -85 | -90 | -95 | 11 - 19.5 | 800 | QuoteSpec Sheet |
- Frequency
- 2 bands
- Reference
- 10 MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -90 dBc/Hz
- PN @ 100 kHz
- -95 dBc/Hz
- VCC
- 11.5 - 19 V
- ICC
- 550 mA
- Frequency
- 3 bands
- Reference
- 50 MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -90 dBc/Hz
- PN @ 100 kHz
- -95 dBc/Hz
- VCC
- 11 - 19.5 V
- ICC
- 800 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
Related Products
Quad Band Low-Noise Block Down Converter
- Frequency range
- 17.7 GHz – 21.2 GHz
- Package size
- 4.22" x 3.85" x 1.00"
- State of the Art noise figure
- Multi-band capabilities
- Quadruple Band
View Series →1 model
Block Down-Converter
- Frequency range
- 3.4 GHz – 30 GHz
- Connectorized Package
- Compact, Rugged Design
- Custom Designs Available
View Series →7 models
