Dual Band Block Down Converter
- Frequency range
- 14.4 GHz – 15.35 GHz
- Package size
- 6.70” x 2.50” x 0.40”
- Connectorized Package
- Compact, Rugged Design
- Dual Band
View Series →3 models
Products
Signal Conversion

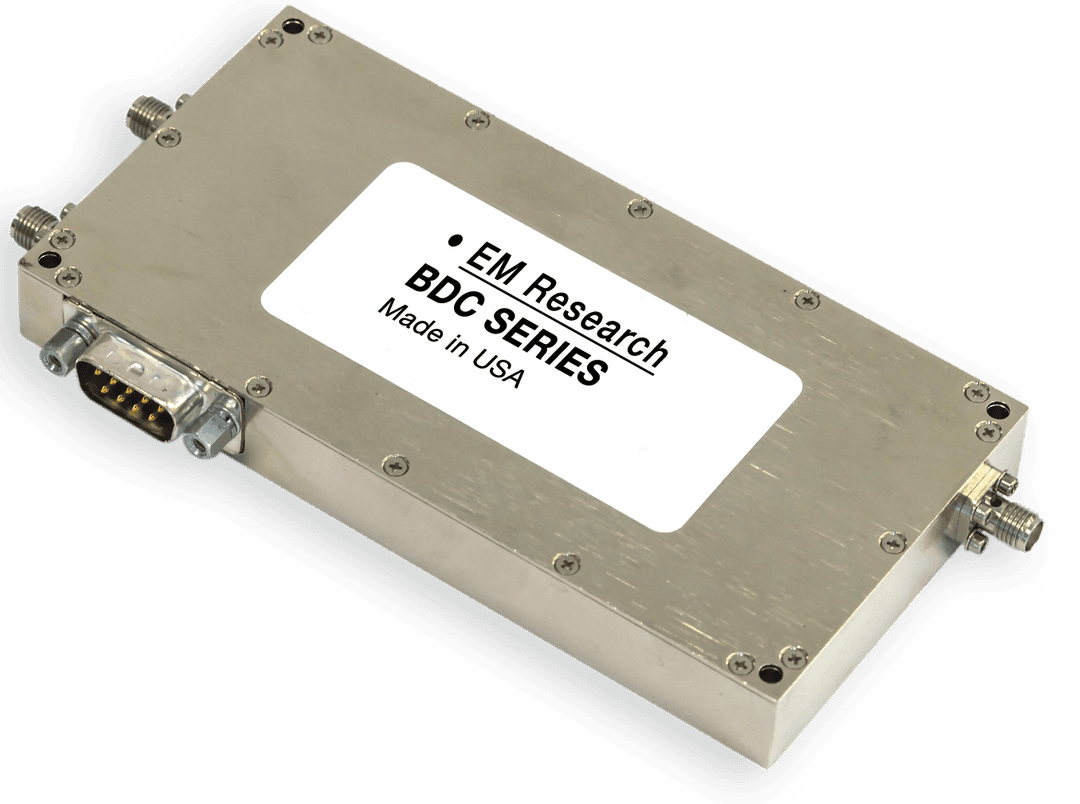

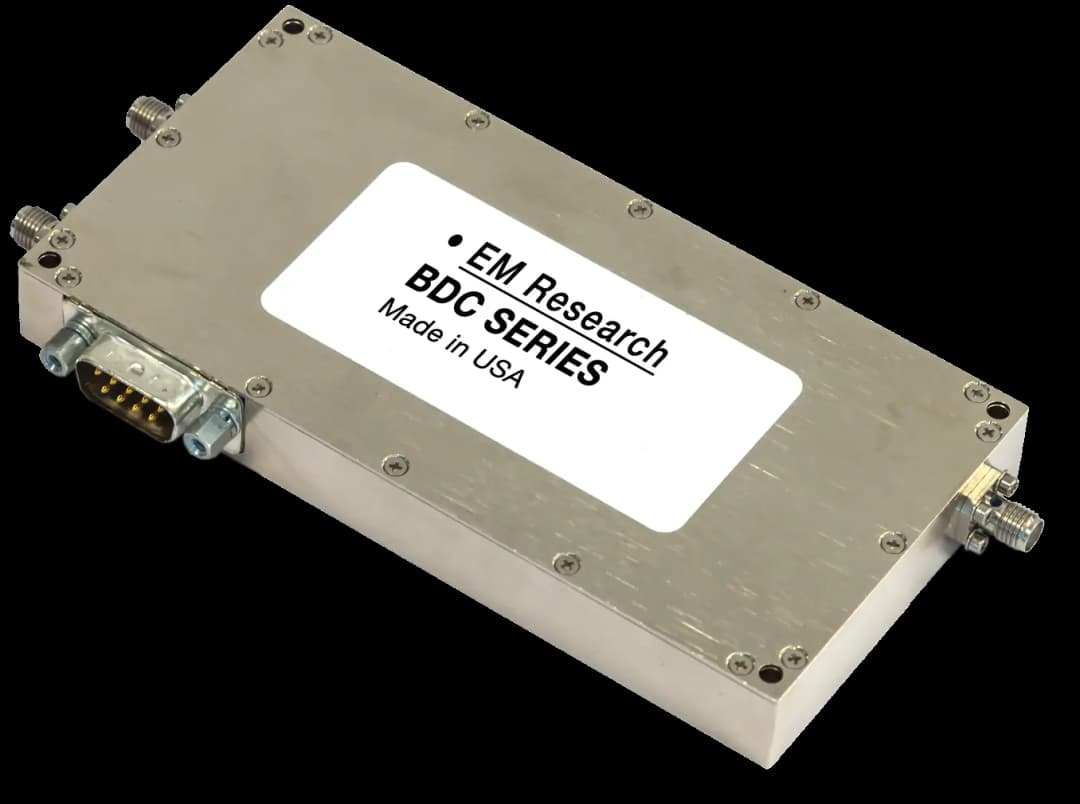

BDC Series
Block Down-Converter
- Connectorized Package
- Compact, Rugged Design
- Custom Designs Available
- Internal Low-Noise LO
- Automatic Switchover to Internal Reference if External Reference is Removed
Industries: Aerospace, Communications, Satcom
Quick Answers
- Frequency range
- 3.4 GHz to 30 GHz
- Typical use
- Aerospace, Communications, Satcom applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 3.4 GHz to 30 GHz |
|---|
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| BDC-4200-04 | 3.4 GHz | 4.2 GHz | +10 | -30 | 10 | -90 | -92 | -102 | 5 | — | QuoteSpec Sheet |
| BDC-8400-02 | 7.9 GHz | 8.4 GHz | +5 | -25 | 10 | -90 | -90 | -100 | +5 | 750 | QuoteSpec Sheet |
| BDC-10850-02 | 9.9 GHz | 10.85 GHz | +5 | -25 | 10 | -90 | -92 | -102 | +12 | 435 | QuoteSpec Sheet |
| BDC-11700-03 | 10.7 GHz | 11.7 GHz | +10 | -30 | 10 | -90 | -92 | -102 | +5 | 625 | QuoteSpec Sheet |
| BDC-12750-05 | 11.7 GHz | 12.75 GHz | +10 | -30 | 10 | -90 | -92 | -102 | +12 | 500 | QuoteSpec Sheet |
| BDC-28500-xx | 28.4 GHz | 28.6 GHz | 0 | -30 | 10 | -72 | -82 | -92 | +12 | 500 | QuoteSpec Sheet |
| BDC-30000-xx | 27.5 GHz | 30 GHz | -20 | -40 | 10 | -72 | -82 | -92 | +5 | 1150 | QuoteSpec Sheet |
- Frequency
- 3.4 GHz – 4.2 GHz
- Power Out
- +10 dBm
- Harmonics
- -30 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -90 dBc/Hz
- PN @ 10 kHz
- -92 dBc/Hz
- PN @ 100 kHz
- -102 dBc/Hz
- VCC
- 5 V
- ICC
- —
- Frequency
- 7.9 GHz – 8.4 GHz
- Power Out
- +5 dBm
- Harmonics
- -25 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -90 dBc/Hz
- PN @ 10 kHz
- -90 dBc/Hz
- PN @ 100 kHz
- -100 dBc/Hz
- VCC
- +5 V
- ICC
- 750 mA
- Frequency
- 9.9 GHz – 10.85 GHz
- Power Out
- +5 dBm
- Harmonics
- -25 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -90 dBc/Hz
- PN @ 10 kHz
- -92 dBc/Hz
- PN @ 100 kHz
- -102 dBc/Hz
- VCC
- +12 V
- ICC
- 435 mA
- Frequency
- 10.7 GHz – 11.7 GHz
- Power Out
- +10 dBm
- Harmonics
- -30 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -90 dBc/Hz
- PN @ 10 kHz
- -92 dBc/Hz
- PN @ 100 kHz
- -102 dBc/Hz
- VCC
- +5 V
- ICC
- 625 mA
- Frequency
- 11.7 GHz – 12.75 GHz
- Power Out
- +10 dBm
- Harmonics
- -30 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -90 dBc/Hz
- PN @ 10 kHz
- -92 dBc/Hz
- PN @ 100 kHz
- -102 dBc/Hz
- VCC
- +12 V
- ICC
- 500 mA
- Frequency
- 28.4 GHz – 28.6 GHz
- Power Out
- 0 dBm
- Harmonics
- -30 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -72 dBc/Hz
- PN @ 10 kHz
- -82 dBc/Hz
- PN @ 100 kHz
- -92 dBc/Hz
- VCC
- +12 V
- ICC
- 500 mA
- Frequency
- 27.5 GHz – 30 GHz
- Power Out
- -20 dBm
- Harmonics
- -40 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -72 dBc/Hz
- PN @ 10 kHz
- -82 dBc/Hz
- PN @ 100 kHz
- -92 dBc/Hz
- VCC
- +5 V
- ICC
- 1150 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
