Signal Conversion

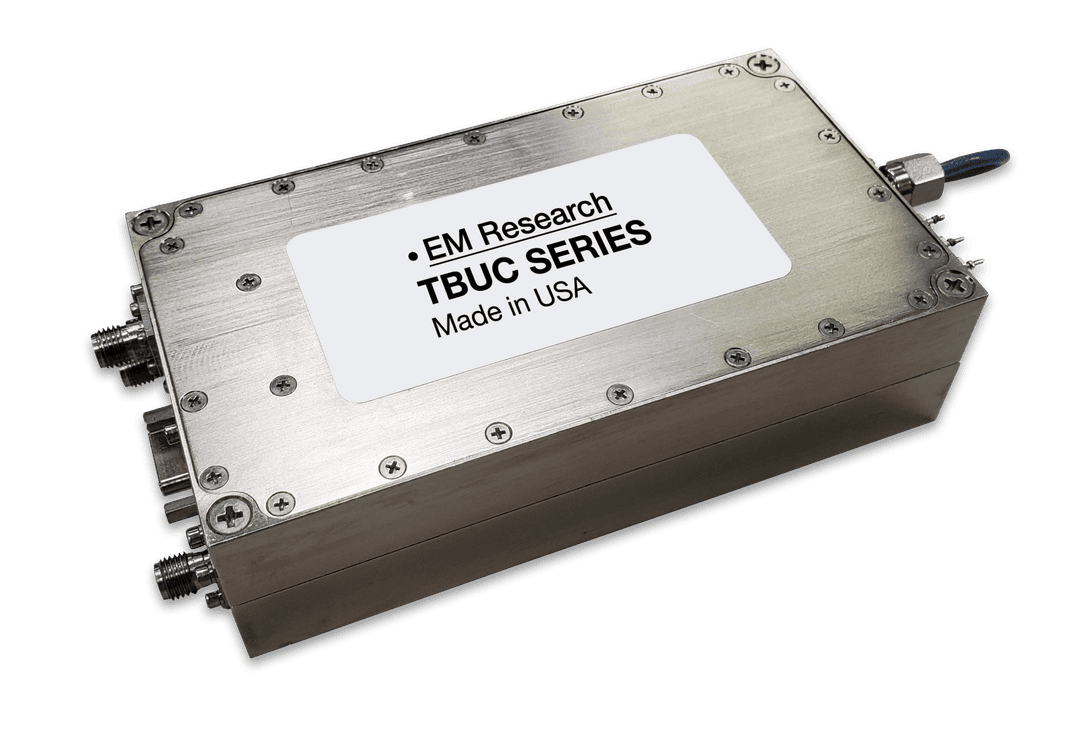

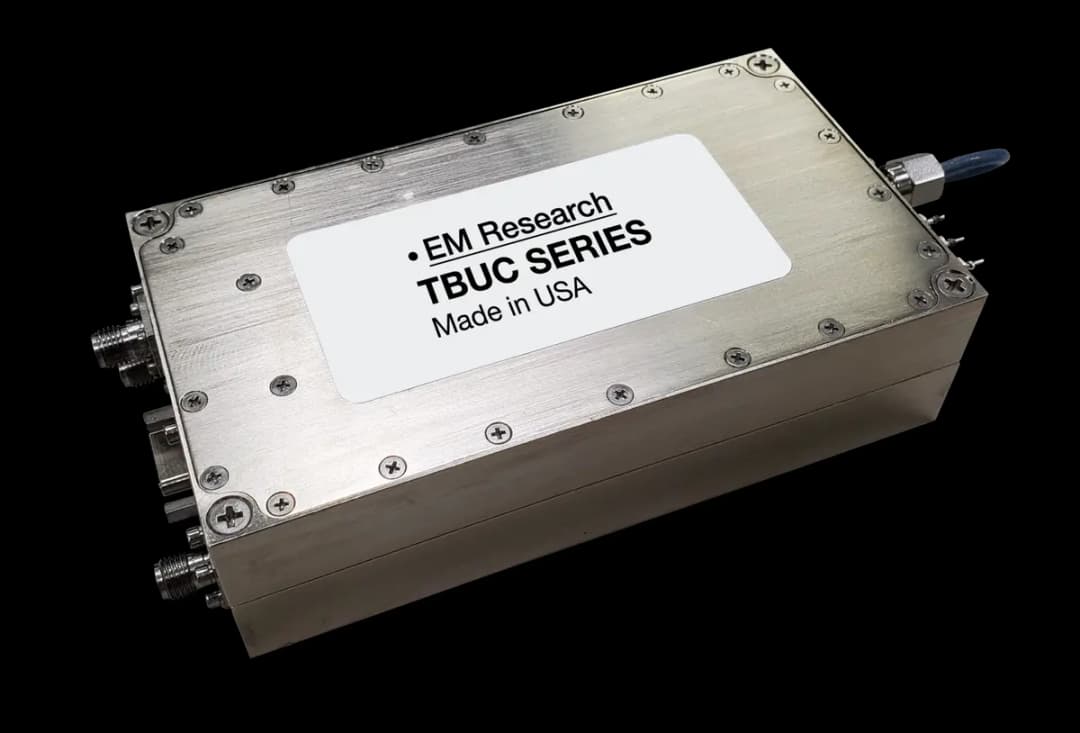

TBUC Series
Triple Band Block Up-Converter
- Connectorized package
- Wide choice of frequency ranges
- Three digitally selectable Ka Band frequency ranges
- Integrated filters
- Gain control
- Low power consumption
- Low phase noise
- Low spurs
- CAN, RS-232, I2C, or SPI control
- Internal / External references
Industries: Aerospace, Satcom
Quick Answers
- Frequency range
- 27.5 GHz to 30 GHz
- Typical use
- Aerospace, Satcom applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 27.5 GHz to 30 GHz |
|---|
Models — all models are configurable
| Model ID | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| TBUC-30000-10 | Band 1 27.5 GHzBand 2 28.5 GHzBand 3 29 GHz | Band 1 28.5 GHzBand 2 29.5 GHzBand 3 30 GHz | 10 | -78 | -88 | -98 | +12 | 950 | QuoteSpec Sheet |
- Frequency
- 3 bands
- Reference
- 10 MHz
- PN @ 1 kHz
- -78 dBc/Hz
- PN @ 10 kHz
- -88 dBc/Hz
- PN @ 100 kHz
- -98 dBc/Hz
- VCC
- +12 V
- ICC
- 950 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
