Quad Band Block Up-Converter
- Frequency range
- 27.5 GHz – 31 GHz
- Package size
- 6.6” x 2.5” x .6”
- Connectorized Package
- Wide choice of frequency ranges
- Quadruple Band
View Series →1 model
Products
Signal Conversion
DBUC Series

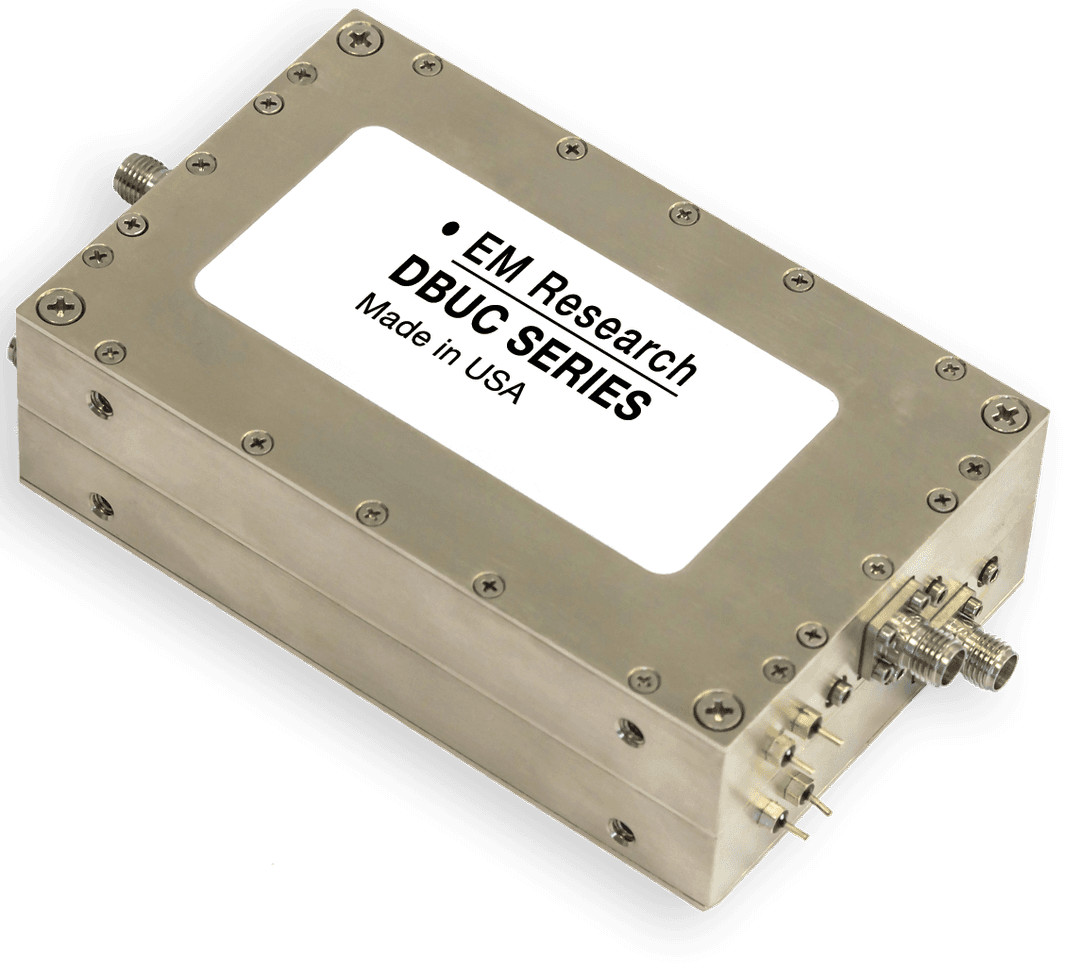

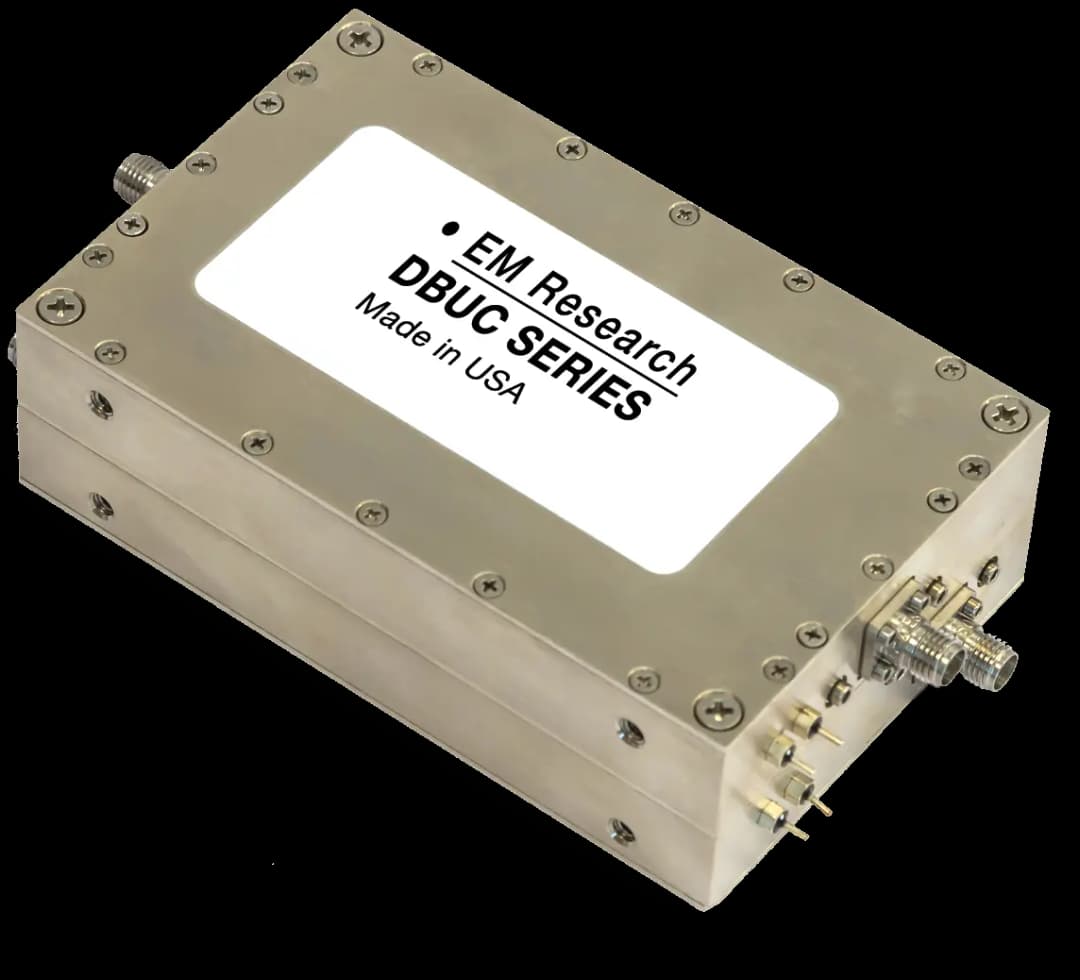

Dual Band Block Up-Converter
- Connectorized Package
- Wide Choice of Frequency Ranges
- Dual Band
- Integrated Filters
- Gain Control
- CAN, RS-232, I2C, or SPI Control
- Internal / External References
- Low Power Consumption
- Low Phase Noise
- Low Spurs
Quick Answers
- Frequency range
- 27.55 GHz to 31 GHz
- Typical use
- all models configurable to requirements.
Series Specifications
| Frequency Range | 27.55 GHz to 31 GHz |
|---|
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DBUC-29150-04 | Band 1 27.55 GHzBand 2 28.55 GHz | Band 1 28.15 GHzBand 2 29.15 GHz | 0 | -60 | 10 | -78 | -88 | -98 | +12 | 900 | QuoteSpec Sheet |
| DBUC-30000-03 | Band 1 28 GHzBand 2 29 GHz | Band 1 29 GHzBand 2 30 GHz | -5 | -60 | 10 | -85 | -97 | -103 | +12 | 800 | QuoteSpec Sheet |
| DBUC-31000-09 | Band 1 29 GHzBand 2 30 GHz | Band 1 30 GHzBand 2 31 GHz | — | -60 | 10 | -84 | -90 | -100 | +12 | 1100 | QuoteSpec Sheet |
- Frequency
- 2 bands
- Power Out
- 0 dBm
- Harmonics
- -60 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -78 dBc/Hz
- PN @ 10 kHz
- -88 dBc/Hz
- PN @ 100 kHz
- -98 dBc/Hz
- VCC
- +12 V
- ICC
- 900 mA
- Frequency
- 2 bands
- Power Out
- -5 dBm
- Harmonics
- -60 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -97 dBc/Hz
- PN @ 100 kHz
- -103 dBc/Hz
- VCC
- +12 V
- ICC
- 800 mA
- Frequency
- 2 bands
- Power Out
- —
- Harmonics
- -60 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -84 dBc/Hz
- PN @ 10 kHz
- -90 dBc/Hz
- PN @ 100 kHz
- -100 dBc/Hz
- VCC
- +12 V
- ICC
- 1100 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
