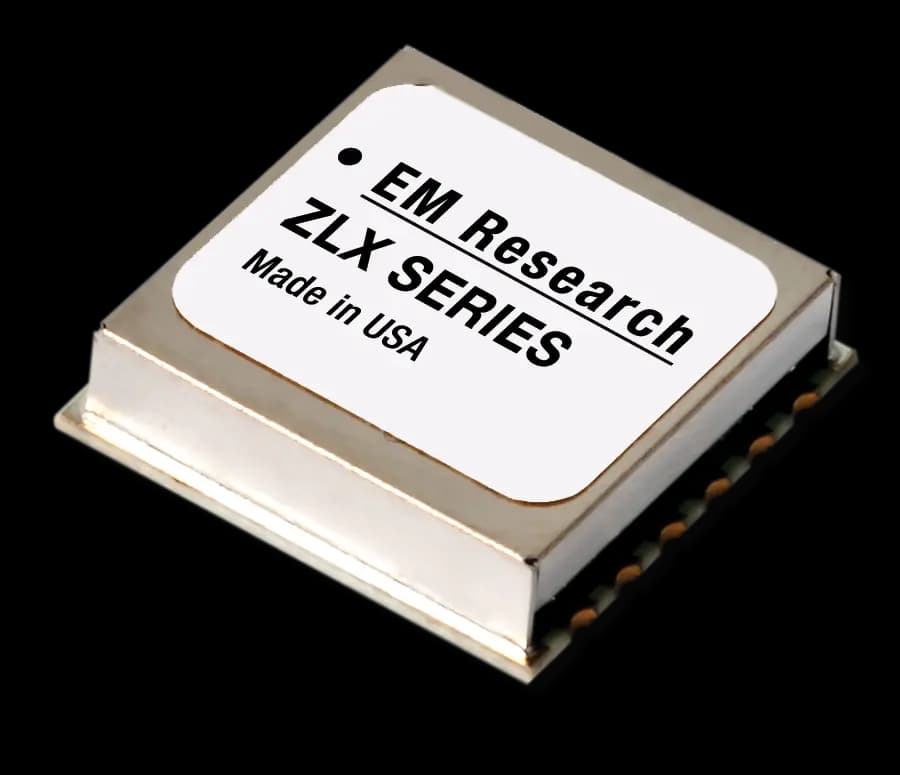

ZLX Series
Fixed-Frequency Synthesizer
- Surface Mount Miniature Package
- Excellent Phase Noise
- Optional Internal Reference
- Output Power to +10 dBm Available
Industries: Communications, Military, Satcom
Quick Answers
- Frequency range
- 50 MHz to 6.5 GHz
- Package
- 0.6” x 0.6” x 0.15” — Surface Mount Miniature Package
- Typical use
- Communications, Military, Satcom applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 50 MHz to 6.5 GHz |
|---|---|
| Temperature Range | 0-50 °C |
| Package Size | 0.6” x 0.6” x 0.15” |
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZLX-970-04 | 970 MHz | +7 | -25 | Internal | -80 | -100 | -120 | +5 | 65 | 0-50 | QuoteSpec Sheet |
| ZLX-1260-04 | 1.26 GHz | +1 | -20 | 10 | -90 | -100 | -120 | +5 | 40 | 0-50 | QuoteSpec Sheet |
| ZLX-1620-05 | 1.62 GHz | +2 | -20 | 10 | -90 | -100 | -120 | +5 | 40 | 0-50 | QuoteSpec Sheet |
| ZLX-2090-04 | 2.09 GHz | +3 | -20 | 10 | -85 | -100 | -120 | +5 | 35 | 0-50 | QuoteSpec Sheet |
| ZLX-3100-05 | 3.1 GHz | +2 | -25 | 10 | -80 | -100 | -120 | +5 | 40 | 0-50 | QuoteSpec Sheet |
| ZLX-3500-03 | 3.5 GHz | +7 | -25 | 10 | -85 | -98 | -120 | +5 | 65 | 0-50 | QuoteSpec Sheet |
- Frequency
- 970 MHz
- Power Out
- +7 dBm
- Harmonics
- -25 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -80 dBc/Hz
- PN @ 10 kHz
- -100 dBc/Hz
- PN @ 100 kHz
- -120 dBc/Hz
- VCC
- +5 V
- ICC
- 65 mA
- Temp Range
- 0-50
- Frequency
- 1.26 GHz
- Power Out
- +1 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -90 dBc/Hz
- PN @ 10 kHz
- -100 dBc/Hz
- PN @ 100 kHz
- -120 dBc/Hz
- VCC
- +5 V
- ICC
- 40 mA
- Temp Range
- 0-50
- Frequency
- 1.62 GHz
- Power Out
- +2 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -90 dBc/Hz
- PN @ 10 kHz
- -100 dBc/Hz
- PN @ 100 kHz
- -120 dBc/Hz
- VCC
- +5 V
- ICC
- 40 mA
- Temp Range
- 0-50
- Frequency
- 2.09 GHz
- Power Out
- +3 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -100 dBc/Hz
- PN @ 100 kHz
- -120 dBc/Hz
- VCC
- +5 V
- ICC
- 35 mA
- Temp Range
- 0-50
- Frequency
- 3.1 GHz
- Power Out
- +2 dBm
- Harmonics
- -25 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -80 dBc/Hz
- PN @ 10 kHz
- -100 dBc/Hz
- PN @ 100 kHz
- -120 dBc/Hz
- VCC
- +5 V
- ICC
- 40 mA
- Temp Range
- 0-50
- Frequency
- 3.5 GHz
- Power Out
- +7 dBm
- Harmonics
- -25 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -98 dBc/Hz
- PN @ 100 kHz
- -120 dBc/Hz
- VCC
- +5 V
- ICC
- 65 mA
- Temp Range
- 0-50
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
