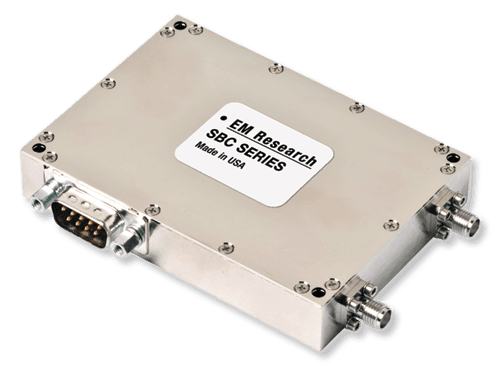

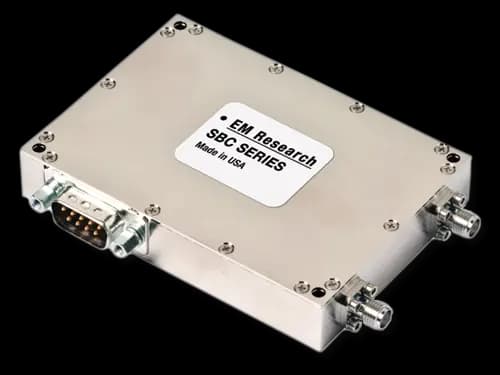

SBC Series
Programmable Frequency Synthesizer
- Connectorized Package
- Fine Resolution Design
- Broadband Designs Available
- Low Phase Noise
- Ultra-Low Spurs
- Optional Internal Reference
Industries: Communications, Laboratory
Quick Answers
- Frequency range
- 10 MHz to 18 GHz
- Package
- 3.5” x 2.5” x 1” — Connectorized Package
- Typical use
- Communications, Laboratory applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 10 MHz to 18 GHz |
|---|---|
| Bandwidth | up to 3 Octaves |
| Output | up to +10 dBm |
| Phase Noise | <-105 dBc/Hz @ 10 KHz offset (Fout = 4 GHz) |
| Harmonics | <-15 dBc |
| Spurs | <-60 dBc |
| Supply Voltage | +5, +8, +12 VDC Current: ≤800 mA |
| Internal Reference | ≤±2.5 ppm, Stability |
| External Reference | 5 to 200 MHz |
| Package Size | 3.5” x 2.5” x 1” |
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SBC-520-03 | 340 MHz | 520 MHz | +10 | -20 | Internal | -110 | -117 | -117 | +5 | 820 | QuoteSpec Sheet |
| SBC-2750-03 | 1.6 GHz | 2.75 GHz | +7 | -15 | 10 | -95 | -100 | -105 | +12 | 750 | QuoteSpec Sheet |
| SBC-4860-03 | 1 GHz | 4.86 GHz | 0 | -15 | Internal | -85 | -95 | -105 | +5 | 770 | QuoteSpec Sheet |
| SBC-8600-02 | 7.8 GHz | 8.6 GHz | +10 | -20 | 10 | — | -90 | -100 | +5 | 650 | QuoteSpec Sheet |
- Frequency
- 340 MHz – 520 MHz
- Power Out
- +10 dBm
- Harmonics
- -20 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -110 dBc/Hz
- PN @ 10 kHz
- -117 dBc/Hz
- PN @ 100 kHz
- -117 dBc/Hz
- VCC
- +5 V
- ICC
- 820 mA
- Frequency
- 1.6 GHz – 2.75 GHz
- Power Out
- +7 dBm
- Harmonics
- -15 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -95 dBc/Hz
- PN @ 10 kHz
- -100 dBc/Hz
- PN @ 100 kHz
- -105 dBc/Hz
- VCC
- +12 V
- ICC
- 750 mA
- Frequency
- 1 GHz – 4.86 GHz
- Power Out
- 0 dBm
- Harmonics
- -15 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -95 dBc/Hz
- PN @ 100 kHz
- -105 dBc/Hz
- VCC
- +5 V
- ICC
- 770 mA
- Frequency
- 7.8 GHz – 8.6 GHz
- Power Out
- +10 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- —
- PN @ 10 kHz
- -90 dBc/Hz
- PN @ 100 kHz
- -100 dBc/Hz
- VCC
- +5 V
- ICC
- 650 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
