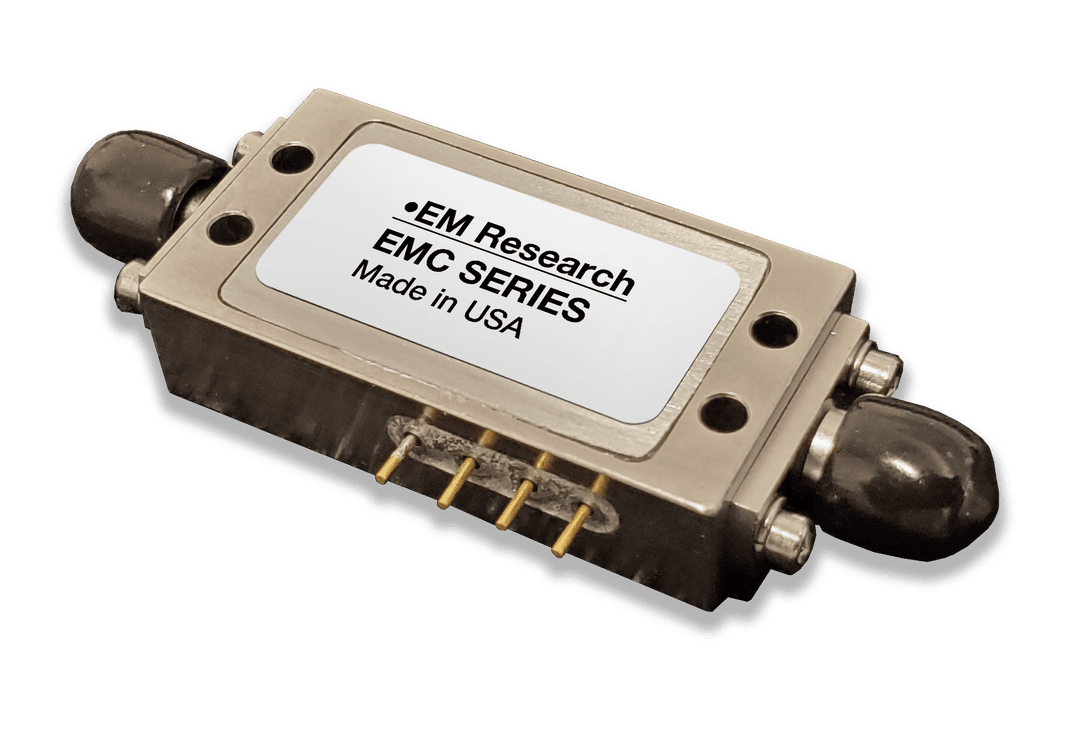

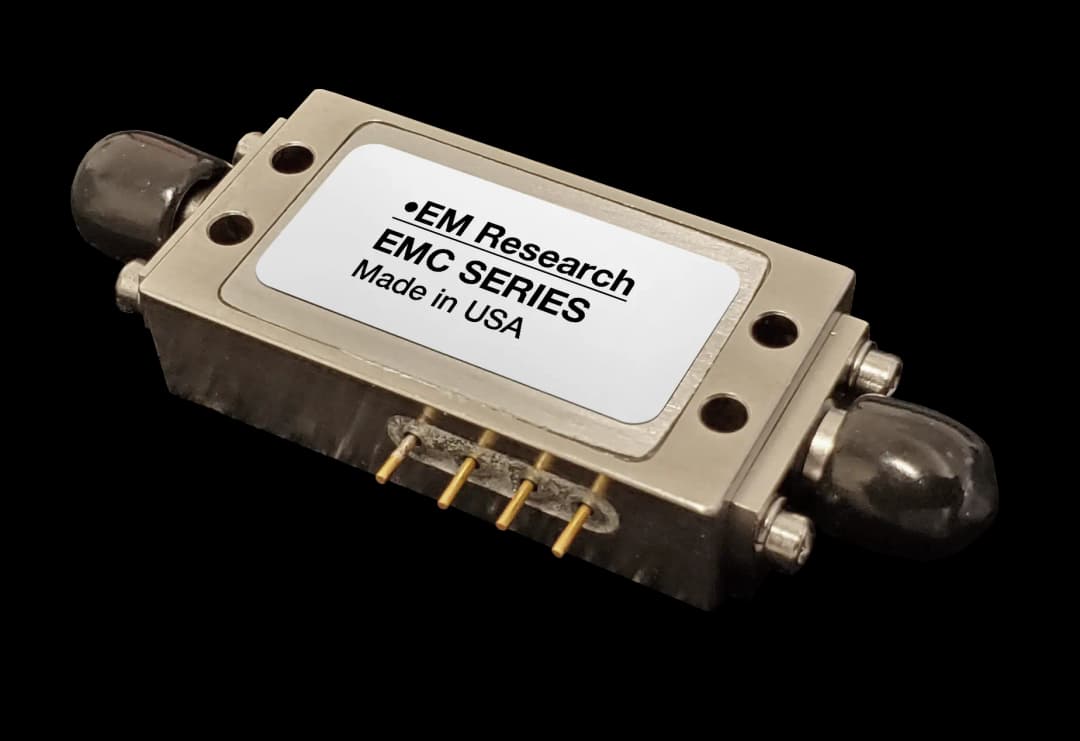

Quick Answers
- Frequency range
- 550 MHz to 9.5 GHz
- Package
- 1.41" x 0.75" x 0.35" — Programmable
- Typical use
- Military applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 550 MHz to 9.5 GHz |
|---|---|
| Output | +19 dBm +/- 3 dB |
| Step Size | 10 MHz |
| Phase Noise | <-88 dBc/Hz @ 10 KHz Offset |
| Conversion Gain | NA |
| Harmonics | <-15 dBC typ |
| Spurs | <-50 dBC typ |
| Input Level | 6 dBm, ± 3 dB |
| Supply Voltage | Vd1: 5V +/- o.5V @ 125 mA, Vd2: 20V +/- 2V @ 25 mA, Vd3: 6V +/- 0.5V @ 375 mA |
| Temperature Range | -30C to +70C |
| Internal Reference | Optional |
| Stability | Same as Reference |
| External Reference | 10 MHz |
| Package Size | 1.41" x 0.75" x 0.35" |
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| EMC-9500-02 | 5.5 GHz | 9.5 GHz | +19 | -15 typ | 10 MHz | -85 | -88 | -90 | 20 | -30C to +70C | QuoteSpec Sheet |
- Frequency
- 5.5 GHz – 9.5 GHz
- Power Out
- +19 dBm
- Harmonics
- -15 typ dBc
- Reference
- 10 MHz MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -88 dBc/Hz
- PN @ 100 kHz
- -90 dBc/Hz
- ICC
- 20 mA
- Temp Range
- -30C to +70C
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
Related Products

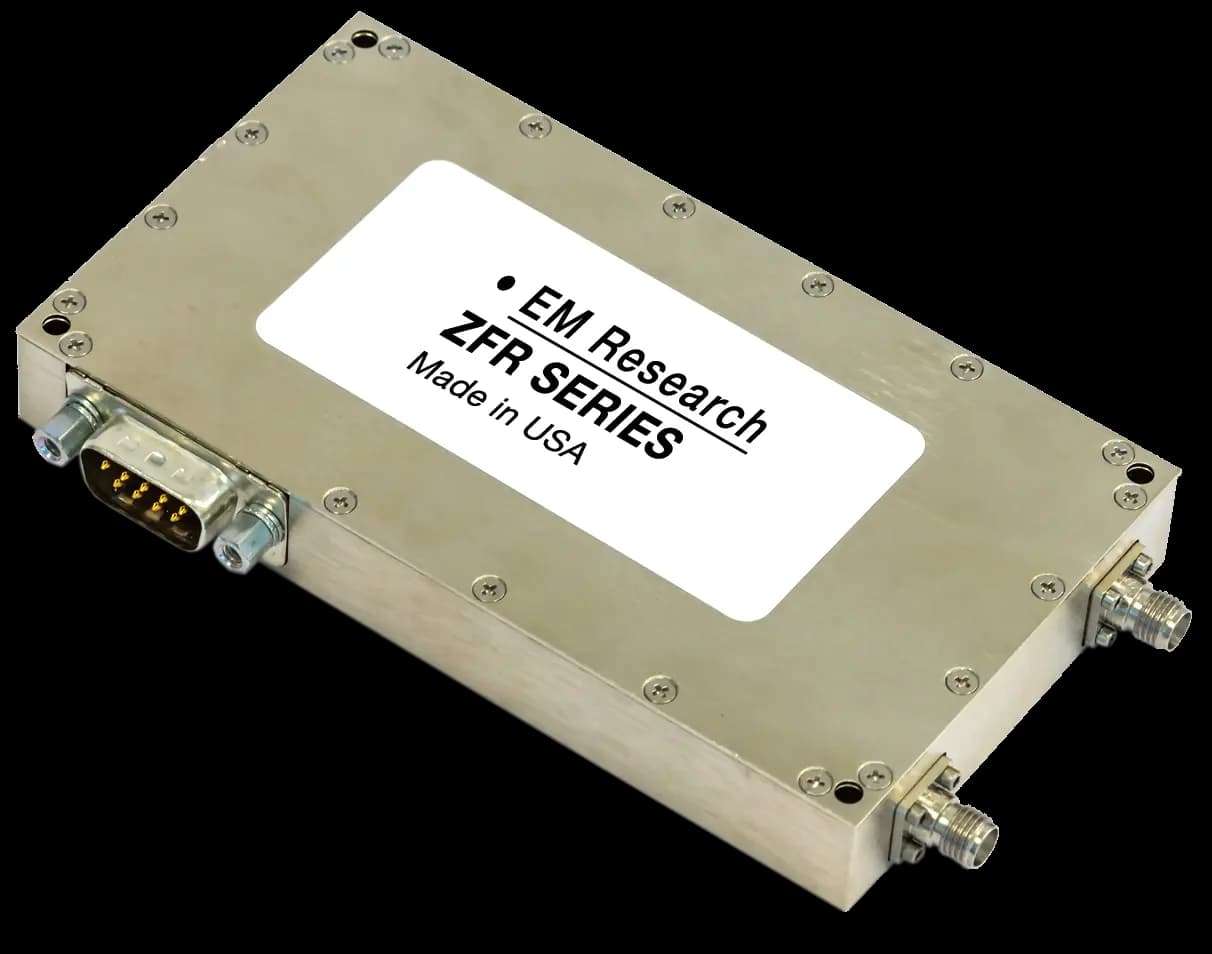

Programmable Frequency Synthesizer
- Frequency range
- 10 MHz – 1 GHz
- Package size
- 2.5” x 4.5” x 0.60”
- Connectorized Package
- Programmable Frequencies to 1 GHz
View Series →2 models

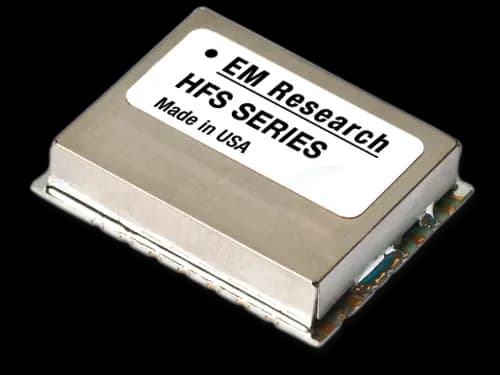

HFS Series
