Products
Frequency Generation

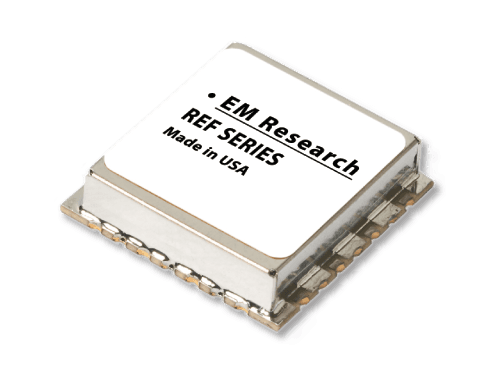

REF Series
Reference Oscillator
- Surface Mount Package
- Free Running
- Low Phase Noise
- Output Power to +10 dBm Available
Industries: Communications, Laboratory
Quick Answers
- Frequency range
- 5 MHz to 500 MHz
- Package
- 0.9” x 0.9” x 0.21” — Surface Mount Package
- Typical use
- Communications, Laboratory applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 5 MHz to 500 MHz |
|---|---|
| Bandwidth | Fixed |
| Output | up to +10 dBm |
| Phase Noise | <-150 dBc/Hz @ 10 KHz offset (Fout = 10 MHz) |
| Harmonics | <-20 dBc |
| Spurs | <-70 dBc |
| Supply Voltage | +5, +8, +12 VDC Current: ≤100 mA |
| Internal Reference | ≤±3.0 ppm, Stability |
| Package Size | 0.9” x 0.9” x 0.21” |
Models — all models are configurable
| Model ID | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| REF-10-130 | 10 MHz | +5 | -12 | Internal | -145 | -150 | +5 | 100 | QuoteSpec Sheet |
| REF-50-06 | 50 MHz | +7 | -20 | Internal | -135 | -150 | +5 | 100 | QuoteSpec Sheet |
| REF-100-125 | 100 MHz | +10 | -15 | Internal | -135 | -160 | +5 | 100 | QuoteSpec Sheet |
- Frequency
- 10 MHz
- Power Out
- +5 dBm
- Harmonics
- -12 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -145 dBc/Hz
- PN @ 10 kHz
- -150 dBc/Hz
- VCC
- +5 V
- ICC
- 100 mA
- Frequency
- 50 MHz
- Power Out
- +7 dBm
- Harmonics
- -20 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -135 dBc/Hz
- PN @ 10 kHz
- -150 dBc/Hz
- VCC
- +5 V
- ICC
- 100 mA
- Frequency
- 100 MHz
- Power Out
- +10 dBm
- Harmonics
- -15 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -135 dBc/Hz
- PN @ 10 kHz
- -160 dBc/Hz
- VCC
- +5 V
- ICC
- 100 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
