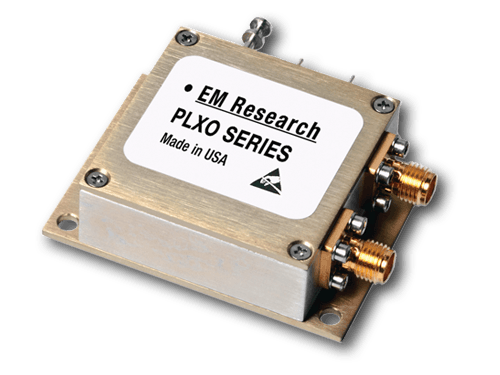

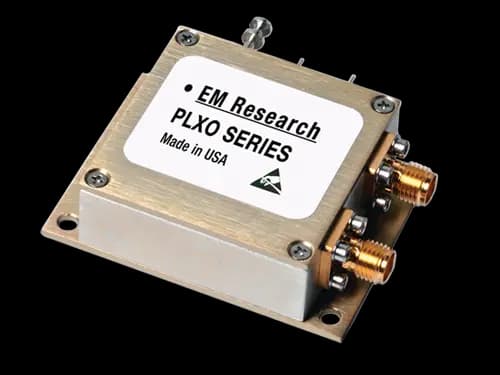

PLXO Series
Phase-Locked Crystal Oscillator
- Connectorized Package
Industries: Communications, Laboratory
Quick Answers
- Frequency range
- 5 MHz to 1.3 GHz
- Package
- 1.5” x 1.5” x 0.6” — Connectorized Package
- Typical use
- Communications, Laboratory applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 5 MHz to 1.3 GHz |
|---|---|
| Bandwidth | Fixed |
| Output | up to +10 dBm |
| Phase Noise | <-155 dBc/Hz @ 10 KHz offset (Fout = 120 MHz) |
| Harmonics | <-30 dBc |
| Spurs | <-70 dBc |
| Supply Voltage | +5, +8, +12 VDC Current ≤200 mA |
| External Reference | 5 to 100 MHz |
| Package Size | 1.5” x 1.5” x 0.6” |
Models — all models are configurable
| Model ID | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PLXO-10-43 | 10 MHz | +14 | -20 | 10 | -145 | -155 | — | +5 | 165 | QuoteSpec Sheet |
| PLXO-50-22 | 50 MHz | +10 | -20 | 10 | -140 | -160 | — | +12 | 95 | QuoteSpec Sheet |
| PLXO-100-120 | 100 MHz | +10 | -25 | 10 | -144 | -154 | — | +5 | 120 | QuoteSpec Sheet |
| PLXO-500-04 | 500 MHz | +7 | -20 | 10 | -115 | -140 | -145 | +5 | 120 | QuoteSpec Sheet |
- Frequency
- 10 MHz
- Power Out
- +14 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -145 dBc/Hz
- PN @ 10 kHz
- -155 dBc/Hz
- PN @ 100 kHz
- —
- VCC
- +5 V
- ICC
- 165 mA
- Frequency
- 50 MHz
- Power Out
- +10 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -140 dBc/Hz
- PN @ 10 kHz
- -160 dBc/Hz
- PN @ 100 kHz
- —
- VCC
- +12 V
- ICC
- 95 mA
- Frequency
- 100 MHz
- Power Out
- +10 dBm
- Harmonics
- -25 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -144 dBc/Hz
- PN @ 10 kHz
- -154 dBc/Hz
- PN @ 100 kHz
- —
- VCC
- +5 V
- ICC
- 120 mA
- Frequency
- 500 MHz
- Power Out
- +7 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -115 dBc/Hz
- PN @ 10 kHz
- -140 dBc/Hz
- PN @ 100 kHz
- -145 dBc/Hz
- VCC
- +5 V
- ICC
- 120 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
