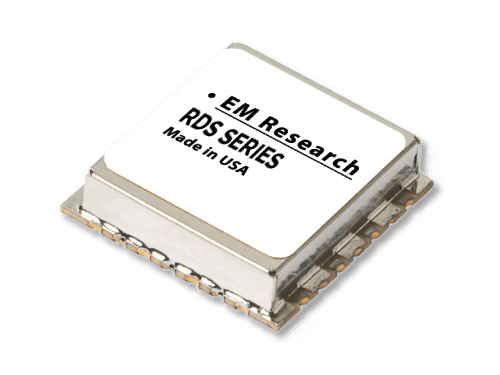

RDS Series
Reference Oscillator
- Surface Mount Package
- Standard Internal TCXO (±2.5 ppm, Stability)
- Tighter Stability Available
- Fixed Frequencies to 100 MHz
Industries: Communications, Laboratory
Quick Answers
- Frequency range
- 10 MHz to 100 MHz
- Package
- 0.9” x 0.9" x 0.21” — Surface Mount Package
- Typical use
- Communications, Laboratory applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 10 MHz to 100 MHz |
|---|---|
| Bandwidth | Fixed |
| Output | up to +13 dBm |
| Phase Noise | <-155 dBc/Hz @ 10 KHz offset |
| Harmonics | Less than -15 dBc |
| Spurs | Less than-60 dBc |
| Internal Reference | ≤2.5 ppm, Stability (TCXO), ≤±90 ppb, Stability (OCXO) |
| External Reference | 10 to 100 MHz |
| Package Size | 0.9” x 0.9" x 0.21” |
Models — all models are configurable
| Model ID | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| RDS-10-42 | 10 MHz | +3 | -20 | 10 | -130 | -140 | +5 | 75 | QuoteSpec Sheet |
| RDS-10-43 | 10 MHz | +13 | -20 | 10 | -140 | -145 | +5 | 85 | QuoteSpec Sheet |
| RDS-100-09 | 100 MHz | +7 | -20 | 10 | -130 | -160 | +5 | 85 | QuoteSpec Sheet |
| RDS-100-10 | 100 MHz | +15 | -15 | 10 | -130 | -155 | +5 | 100 | QuoteSpec Sheet |
| RDS-100-11 | 100 MHz | +7 | -20 | 10 | -135 | -155 | +5 | 85 | QuoteSpec Sheet |
- Frequency
- 10 MHz
- Power Out
- +3 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -130 dBc/Hz
- PN @ 10 kHz
- -140 dBc/Hz
- VCC
- +5 V
- ICC
- 75 mA
- Frequency
- 10 MHz
- Power Out
- +13 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -140 dBc/Hz
- PN @ 10 kHz
- -145 dBc/Hz
- VCC
- +5 V
- ICC
- 85 mA
- Frequency
- 100 MHz
- Power Out
- +7 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -130 dBc/Hz
- PN @ 10 kHz
- -160 dBc/Hz
- VCC
- +5 V
- ICC
- 85 mA
- Frequency
- 100 MHz
- Power Out
- +15 dBm
- Harmonics
- -15 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -130 dBc/Hz
- PN @ 10 kHz
- -155 dBc/Hz
- VCC
- +5 V
- ICC
- 100 mA
- Frequency
- 100 MHz
- Power Out
- +7 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -135 dBc/Hz
- PN @ 10 kHz
- -155 dBc/Hz
- VCC
- +5 V
- ICC
- 85 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
