Products
Frequency Generation

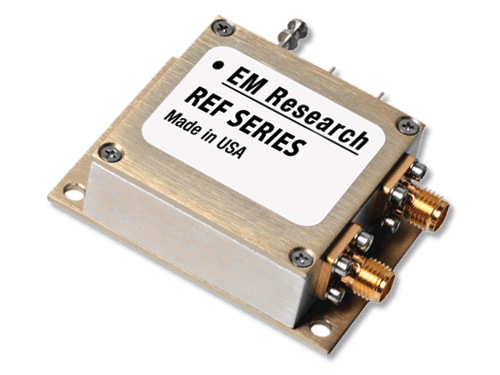

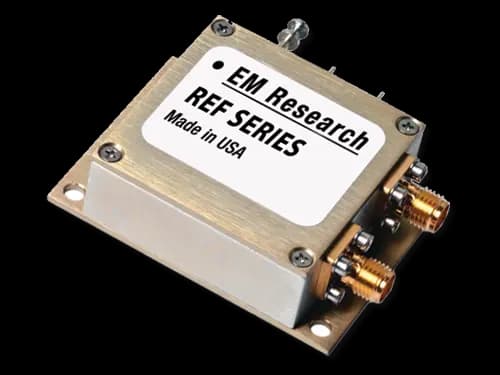

REF Series
Reference Oscillator
- Connectorized Package
- Free Running
- Low Phase Noise
- Output Power to +12 dBm Available
Industries: Communications, Laboratory
Quick Answers
- Frequency range
- 5 MHz to 500 MHz
- Package
- 1.5” x 1.5” x 0.6” — Connectorized Package
- Typical use
- Communications, Laboratory applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 5 MHz to 500 MHz |
|---|---|
| Bandwidth | Fixed |
| Output | up to +12 dBm |
| Phase Noise | <-150 dBc/Hz @ 10 KHz offset (Fout = 10 MHz) |
| Harmonics | <-20 dBc |
| Spurs | <-70 dBc |
| Supply Voltage | +5, +8, +12 VDC Current: ≤100 mA |
| Internal Reference | ≤±2.5 ppm, Stability |
| Package Size | 1.5” x 1.5” x 0.6” |
Models — all models are configurable
| Model ID | ||||||||
|---|---|---|---|---|---|---|---|---|
| REF-10-131 | 10 MHz | +3 | -15 | - | -150 | +5 | 70 | QuoteSpec Sheet |
| REF-40-05 | 40 MHz | +5 | -15 | - | -135 | +12 | 80 | QuoteSpec Sheet |
| REF-60-06 | 60 MHz | +3 | -20 | - | -140 | +5 | 80 | QuoteSpec Sheet |
| REF-100-124 | 100 MHz | +10 | -15 | - | -140 | +5 | 50 | QuoteSpec Sheet |
- Frequency
- 10 MHz
- Power Out
- +3 dBm
- Harmonics
- -15 dBc
- Reference
- - MHz
- PN @ 1 kHz
- -150 dBc/Hz
- VCC
- +5 V
- ICC
- 70 mA
- Frequency
- 40 MHz
- Power Out
- +5 dBm
- Harmonics
- -15 dBc
- Reference
- - MHz
- PN @ 1 kHz
- -135 dBc/Hz
- VCC
- +12 V
- ICC
- 80 mA
- Frequency
- 60 MHz
- Power Out
- +3 dBm
- Harmonics
- -20 dBc
- Reference
- - MHz
- PN @ 1 kHz
- -140 dBc/Hz
- VCC
- +5 V
- ICC
- 80 mA
- Frequency
- 100 MHz
- Power Out
- +10 dBm
- Harmonics
- -15 dBc
- Reference
- - MHz
- PN @ 1 kHz
- -140 dBc/Hz
- VCC
- +5 V
- ICC
- 50 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
