Products
Frequency Generation

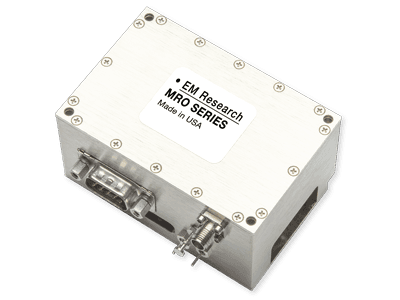

MRO Series
Fixed-Frequency Synthesizer
- Connectorized Package
- Replaces Oscillators in Microwave Radios
- Serially-Programmable
- Manually Fine-Tuned
- High Stability, <±1ppm (-10°C to +70°C)
- Non-Volatile Memory
Industries: Communications
Quick Answers
- Frequency range
- 2 GHz to 12 GHz
- Package
- 3.05” x 2.02” x 1.62” — Connectorized Package
- Typical use
- Communications applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 2 GHz to 12 GHz |
|---|---|
| Output | up to +13 dBm |
| Spurs | <-70 dBc Typ |
| Supply Voltage | +5, +8, +12 VDC @ 300 mA |
| Stability | ≤±1 ppm (-10°C to +70°C) |
| Package Size | 3.05” x 2.02” x 1.62” |
Models — all models are configurable
| Model ID | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MRO-6150-03 | 6.15 GHz | +13 | -30 | Internal | -75 | -95 | -115 | -24 | 250 | QuoteSpec Sheet |
| MRO-6400-03 | 6.4 GHz | +13 | -30 | Internal | -75 | -95 | -115 | -24 | 250 | QuoteSpec Sheet |
- Frequency
- 6.15 GHz
- Power Out
- +13 dBm
- Harmonics
- -30 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -75 dBc/Hz
- PN @ 10 kHz
- -95 dBc/Hz
- PN @ 100 kHz
- -115 dBc/Hz
- VCC
- -24 V
- ICC
- 250 mA
- Frequency
- 6.4 GHz
- Power Out
- +13 dBm
- Harmonics
- -30 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -75 dBc/Hz
- PN @ 10 kHz
- -95 dBc/Hz
- PN @ 100 kHz
- -115 dBc/Hz
- VCC
- -24 V
- ICC
- 250 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
