Products
Frequency Generation

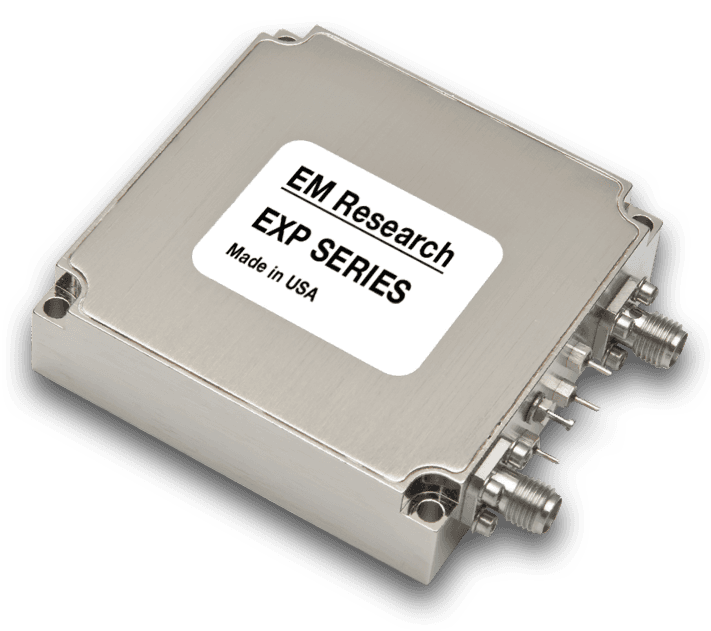

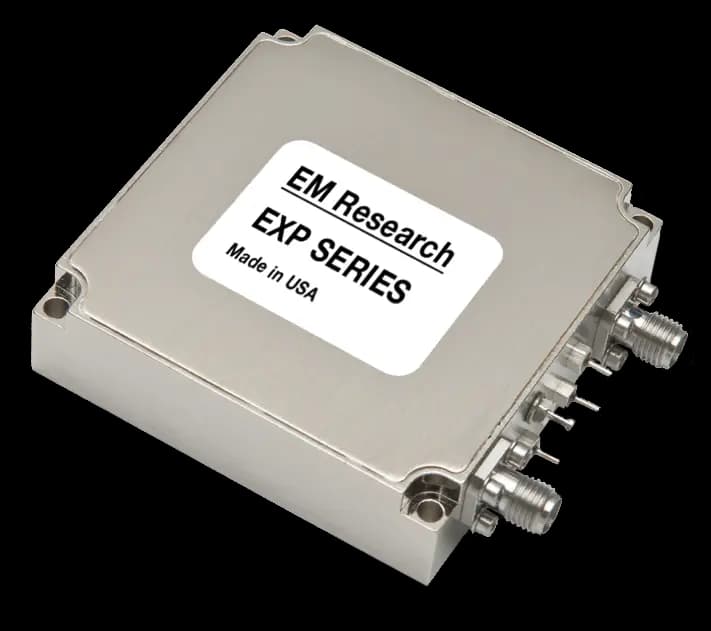

EXP Series
Switchable Fixed Frequency Synthesizer
- Connectorized Package
- Alternates Between Multiple Fixed Frequencies
- Exceptionally-Low Phase Noise
- DRO Replacement
- Optional Internal Reference
- Robust Designs Available
- Optionally Hermetically-Sealed
Industries: Aerospace, Laboratory
Quick Answers
- Frequency range
- 9.3 GHz to 13.85 GHz
- Package
- 2.25” x 2.25” x 0.6” — Connectorized Package
- Typical use
- Aerospace, Laboratory applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 9.3 GHz to 13.85 GHz |
|---|---|
| Bandwidth | Fixed |
| Output | up to +13 dBm |
| Phase Noise | <-100 dBc/Hz @ 10 KHz offset |
| Harmonics | <-25 dBc |
| Spurs | <-70 dBc |
| Supply Voltage | +12 VDC current: ≤450 mA |
| External Reference | 10 to 100 MHz |
| Package Size | 2.25” x 2.25” x 0.6” |
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| EXP-12000-02 | 11 GHz | 12 GHz | +13 | -25 | 100 | -90 | -100 | -108 | +12 | 450 | QuoteSpec Sheet |
- Frequency
- 11 GHz – 12 GHz
- Power Out
- +13 dBm
- Harmonics
- -25 dBc
- Reference
- 100 MHz
- PN @ 1 kHz
- -90 dBc/Hz
- PN @ 10 kHz
- -100 dBc/Hz
- PN @ 100 kHz
- -108 dBc/Hz
- VCC
- +12 V
- ICC
- 450 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
