Products
Frequency Generation

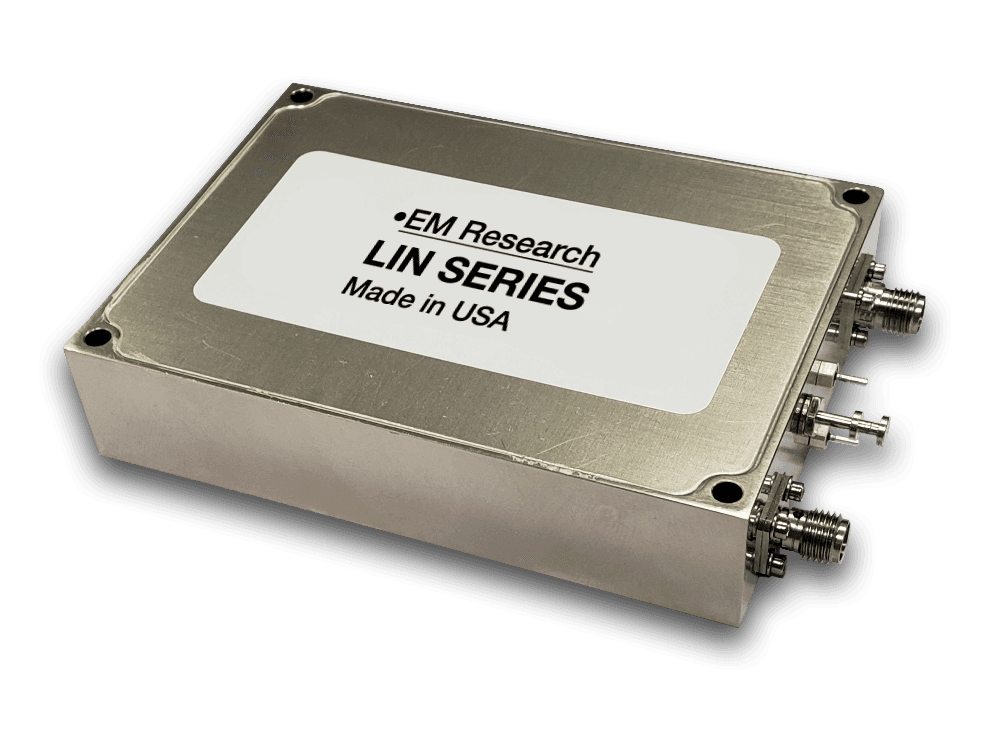

LIN Series
Fixed Frequency Synthesizer
- Low Close-In Phase Noise
- Connectorized Package
- Fine Resolution Design
- Low Phase Noise
- Ultra-Low Spurs
- Optional Internal Reference
Industries: Communications, Laboratory, Satcom
Quick Answers
- Frequency range
- 5 GHz to 40 GHz
- Package
- 3.5” x 2.5” x 1” — Low Close-In Phase Noise
- Typical use
- Communications, Laboratory, Satcom applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 5 GHz to 40 GHz |
|---|---|
| Output | up to +20 dBm |
| Phase Noise | <-109 dBc/Hz @ 10 KHz offset |
| Harmonics | <-20 dBc |
| Spurs | <-60 dBc |
| Supply Voltage | +12 VDC Current: ≤800 mA |
| Stability | Same as Reference |
| External Reference | 100 MHz |
| Package Size | 3.5” x 2.5” x 1” |
Models — all models are configurable
| Model ID | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| LIN-26300-02 | 26.3 GHz | +20 | -20 | 100 | -100 | -109 | -109 | +12 | 800 | QuoteSpec Sheet |
- Frequency
- 26.3 GHz
- Power Out
- +20 dBm
- Harmonics
- -20 dBc
- Reference
- 100 MHz
- PN @ 1 kHz
- -100 dBc/Hz
- PN @ 10 kHz
- -109 dBc/Hz
- PN @ 100 kHz
- -109 dBc/Hz
- VCC
- +12 V
- ICC
- 800 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
