Products
Frequency Generation

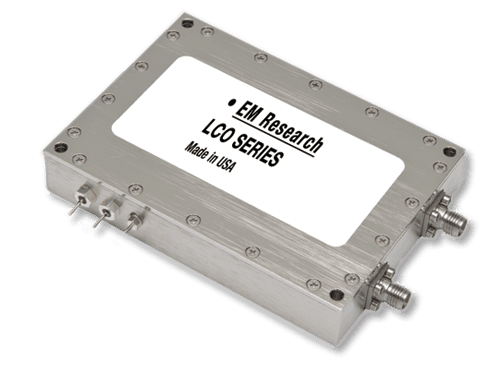

LCO Series
Fixed-Frequency Synthesizer
- Connectorized Package
- Low Output Power Variation (±0.05 dB)
- Output Power to +10 dBm Available
- Optional Internal Reference
Industries: Military
Quick Answers
- Frequency range
- 1 GHz to 30.5 GHz
- Package
- 3.5” x 2.5” x 0.6” — Connectorized Package
- Typical use
- Military applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 1 GHz to 30.5 GHz |
|---|---|
| External Reference | 5 to 100 MHz |
| Package Size | 3.5” x 2.5” x 0.6” |
Models — all models are configurable
| Model ID | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| LCO-2270-02 | 2.27 GHz | +10 | -30 | 50 | -80 | -100 | -125 | +5 | 200 | QuoteSpec Sheet |
| LCO-12750-05 | 12.75 GHz | 0 | -20 | Internal | -88 | -95 | -95 | +5 | 700 | QuoteSpec Sheet |
| LCO-20700-02 | 20.7 GHz | 0 | -20 | Internal | — | -50 | -75 | +5 | 775 | QuoteSpec Sheet |
| LCO-30500-03 | 30.5 GHz | 0 | -20 | Internal | — | -50 | -75 | +5 | 700 | QuoteSpec Sheet |
- Frequency
- 2.27 GHz
- Power Out
- +10 dBm
- Harmonics
- -30 dBc
- Reference
- 50 MHz
- PN @ 1 kHz
- -80 dBc/Hz
- PN @ 10 kHz
- -100 dBc/Hz
- PN @ 100 kHz
- -125 dBc/Hz
- VCC
- +5 V
- ICC
- 200 mA
- Frequency
- 12.75 GHz
- Power Out
- 0 dBm
- Harmonics
- -20 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- -88 dBc/Hz
- PN @ 10 kHz
- -95 dBc/Hz
- PN @ 100 kHz
- -95 dBc/Hz
- VCC
- +5 V
- ICC
- 700 mA
- Frequency
- 20.7 GHz
- Power Out
- 0 dBm
- Harmonics
- -20 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- —
- PN @ 10 kHz
- -50 dBc/Hz
- PN @ 100 kHz
- -75 dBc/Hz
- VCC
- +5 V
- ICC
- 775 mA
- Frequency
- 30.5 GHz
- Power Out
- 0 dBm
- Harmonics
- -20 dBc
- Reference
- Internal MHz
- PN @ 1 kHz
- —
- PN @ 10 kHz
- -50 dBc/Hz
- PN @ 100 kHz
- -75 dBc/Hz
- VCC
- +5 V
- ICC
- 700 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
