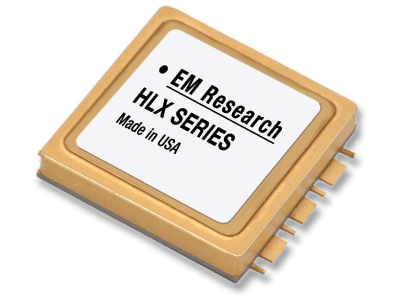

HLX Series
Programmable Frequency Synthesizer
- Surface Mount Package
- Ruggedized, Hi-Rel
- Hermetically-Sealed
- Extreme Shock and Vibration Tolerance
- Fast Switching Designs Available
Industries: Aerospace, Military
Quick Answers
- Frequency range
- 100 MHz to 17 GHz
- Package
- 0.8” x 0.8” x 0.15” — Surface Mount Package
- Typical use
- Aerospace, Military applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 100 MHz to 17 GHz |
|---|---|
| Bandwidth | ≤65% |
| Output | up to +13 dBm |
| Switching Speed | down to 100 uSec |
| Phase Noise | <-95 dBc/Hz @ 10 KHz offset (Fout = 1 GHz) |
| Harmonics | <-20 dBc |
| Spurs | <-60 dBc |
| Supply Voltage | +3.3, +5 VDC Current: ≤100 mA |
| External Reference | 5 to 100 MHz |
| Package Size | 0.8” x 0.8” x 0.15” |
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| HLX-765-03 | 590 MHz | 765 MHz | +7 | -12 | 10 | -89 | -90 | -106 | +5 | 70 | QuoteSpec Sheet |
| HLX-940-03 | 765 MHz | 940 MHz | +7 | -12 | 10 | -93 | -93 | -104 | +5 | 70 | QuoteSpec Sheet |
| HLX-2190-02 | 2.1 GHz | 2.19 GHz | +7 | -20 | 100 | — | -87 | -112 | +5 | 100 | QuoteSpec Sheet |
| HLX-10600-02 | 9 GHz | 10.6 GHz | +10 | -30 | 10 | -75 | -80 | -80 | +5 | 275 | QuoteSpec Sheet |
- Frequency
- 590 MHz – 765 MHz
- Power Out
- +7 dBm
- Harmonics
- -12 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -89 dBc/Hz
- PN @ 10 kHz
- -90 dBc/Hz
- PN @ 100 kHz
- -106 dBc/Hz
- VCC
- +5 V
- ICC
- 70 mA
- Frequency
- 765 MHz – 940 MHz
- Power Out
- +7 dBm
- Harmonics
- -12 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -93 dBc/Hz
- PN @ 10 kHz
- -93 dBc/Hz
- PN @ 100 kHz
- -104 dBc/Hz
- VCC
- +5 V
- ICC
- 70 mA
- Frequency
- 2.1 GHz – 2.19 GHz
- Power Out
- +7 dBm
- Harmonics
- -20 dBc
- Reference
- 100 MHz
- PN @ 1 kHz
- —
- PN @ 10 kHz
- -87 dBc/Hz
- PN @ 100 kHz
- -112 dBc/Hz
- VCC
- +5 V
- ICC
- 100 mA
- Frequency
- 9 GHz – 10.6 GHz
- Power Out
- +10 dBm
- Harmonics
- -30 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -75 dBc/Hz
- PN @ 10 kHz
- -80 dBc/Hz
- PN @ 100 kHz
- -80 dBc/Hz
- VCC
- +5 V
- ICC
- 275 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
