Digital Data Sheet

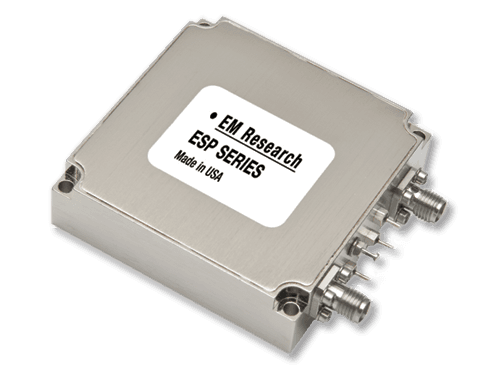

ESP-42000-02
Fixed-Frequency Synthesizer
A fixed-frequency synthesizer from the EM Research ESP Series, delivering 42 GHz. Like every EMR model, the ESP-42000-02 is configurable to your exact requirements.
Series Features
- Connectorized Package
- Exceptionally-Low Phase Noise
- DRO Replacement
- Optional Internal Reference
- Frequency Range to 50 GHz
- Robust Designs Available
- Optionally Hermetically-Sealed
Applied Industries
Aerospace · Communications · Laboratory · Satcom
Frequency
42 GHz
Electrical Specifications
| Power Out | +7 dBm |
|---|---|
| Harmonics | -20 dBc |
| VCC | +15 ±0.5 |
| ICC | 300 mA |
Phase Noise
| PN @ 1 kHz | -95 dBc/Hz |
|---|---|
| PN @ 10 kHz | -100 dBc/Hz |
| PN @ 100 kHz | -102 dBc/Hz |
Reference
| Reference | 100 MHz |
|---|
Mechanical
| Package | 2.25” x 2.25” x 0.6” |
|---|
All specifications are typical unless otherwise specified and subject to change without notice. All models are configurable — contact EM Research for custom frequencies, packages, and screening.
