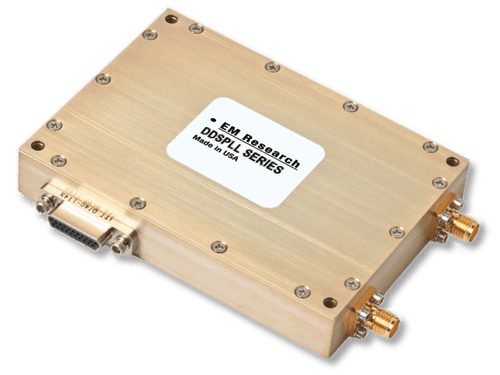

DDSPLL Series
Programmable Frequency Synthesizer
- Connectorized Package
- Programmable Frequencies to 1 GHz
Industries: Communications, Laboratory, Military
Quick Answers
- Frequency range
- 10 MHz to 1 GHz
- Package
- 2.5” x 4.5” x 0.60” — Connectorized Package
- Typical use
- Communications, Laboratory, Military applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 10 MHz to 1 GHz |
|---|---|
| Bandwidth | Programmable |
| Output | up to +13 dBm |
| Phase Noise | <-165 dBc/Hz @ 10 KHz offset |
| Harmonics | <-20 dBc |
| Internal Reference | 10 to 100 MHz |
| Package Size | 2.5” x 4.5” x 0.60” |
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DDSPLL-65-02 | 3 MHz | 30 MHz | +13 | -25 | 10 | -130 | -145 | -150 | +5 | 500 | QuoteSpec Sheet |
| DDSPLL-30-02 | 45 MHz | 65 MHz | -3 | -25 | 100 | -155 | -165 | -168 | +5 | 500 | QuoteSpec Sheet |
- Frequency
- 3 MHz – 30 MHz
- Power Out
- +13 dBm
- Harmonics
- -25 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -130 dBc/Hz
- PN @ 10 kHz
- -145 dBc/Hz
- PN @ 100 kHz
- -150 dBc/Hz
- VCC
- +5 V
- ICC
- 500 mA
- Frequency
- 45 MHz – 65 MHz
- Power Out
- -3 dBm
- Harmonics
- -25 dBc
- Reference
- 100 MHz
- PN @ 1 kHz
- -155 dBc/Hz
- PN @ 10 kHz
- -165 dBc/Hz
- PN @ 100 kHz
- -168 dBc/Hz
- VCC
- +5 V
- ICC
- 500 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
