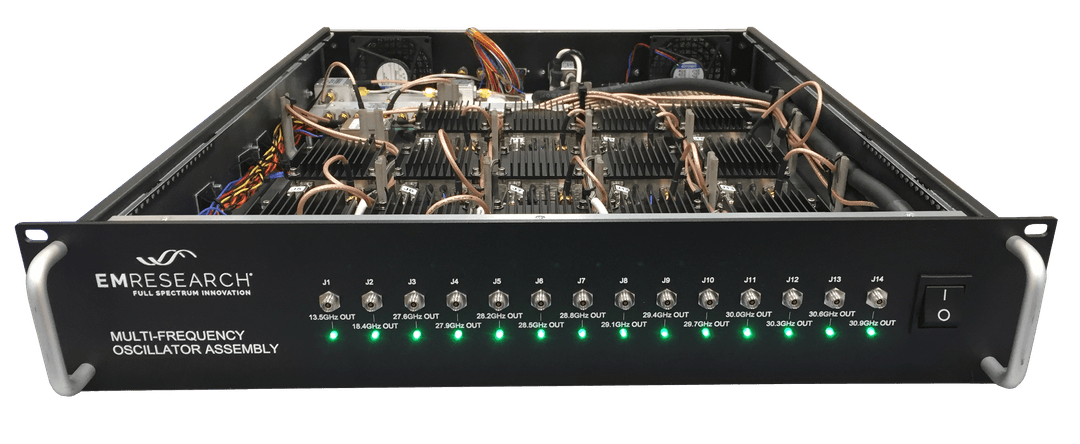

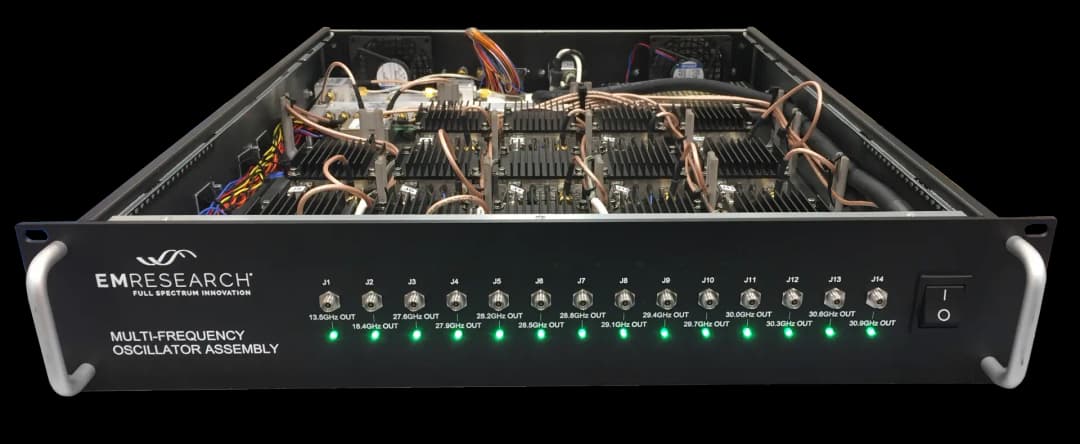

MTS Series
Multi-Tone Source
- ultimate laboratory solution
- up to 14 independent fixed output frequencies with
- excellent phase noise
- internal cooling fans
- heatsinks,
- LED lock indication
- 37 pin micro-D on/off control.
Quick Answers
- Frequency range
- 10 MHz to 42 GHz
- Package
- Standard 2U Rack Mount — ultimate laboratory solution
- Typical use
- all models configurable to requirements.
Series Specifications
| Frequency Range | 10 MHz to 42 GHz |
|---|---|
| Bandwidth | 14 independent fixed frequencies |
| Output | +26 dB |
| Output / Input Isolation | >70 dB between channels |
| Supply Voltage | 110 V or 240 V at 60 Hz |
| Internal Reference | Optional with RDS |
| External Reference | Optional, 100 MHz |
| Package Size | Standard 2U Rack Mount |
Models — all models are configurable
| Model ID | |||||||
|---|---|---|---|---|---|---|---|
| MTS Series | 0.00005 MHz | 40 GHz | +26 | Available 5 to 500 MHz | 100 V or 240 V | 60 | QuoteSpec Sheet |
- Frequency
- 0.00005 MHz – 40 GHz
- Power Out
- +26 dBm
- Reference
- Available 5 to 500 MHz MHz
- VCC
- 100 V or 240 V V
- ICC
- 60 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
