Products
Integrated Microwave Assemblies Solutions

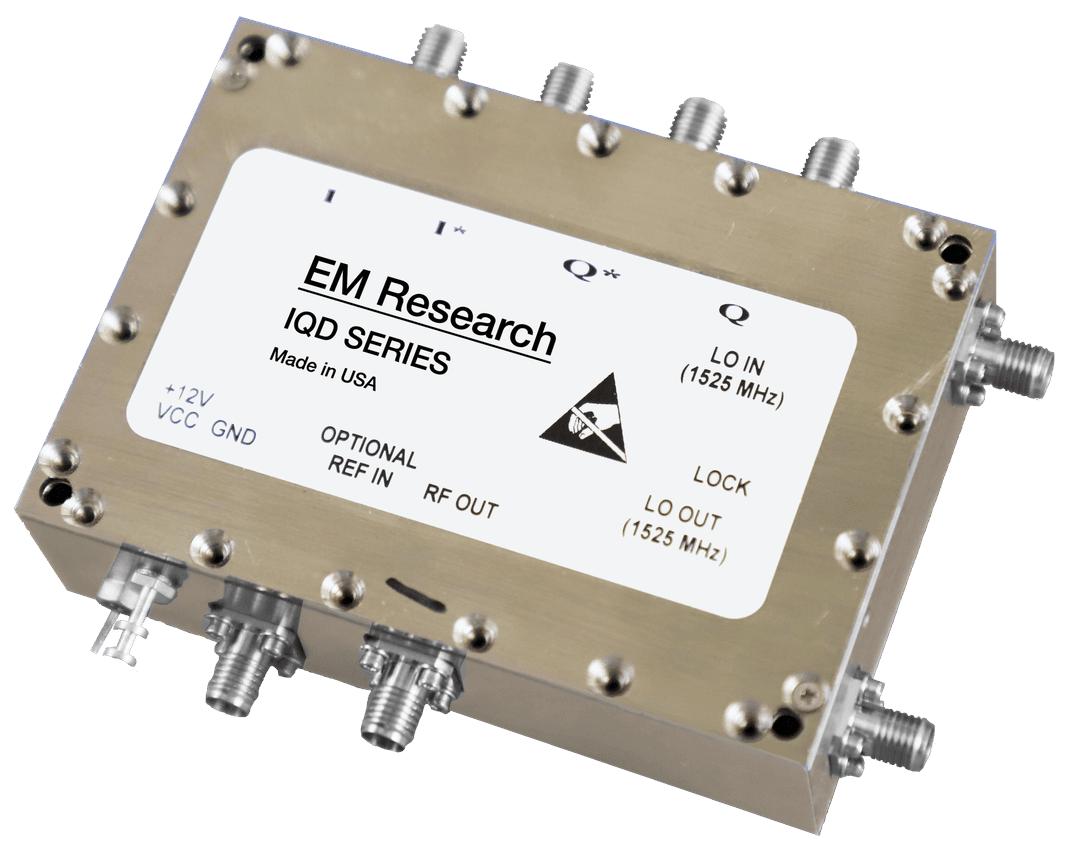

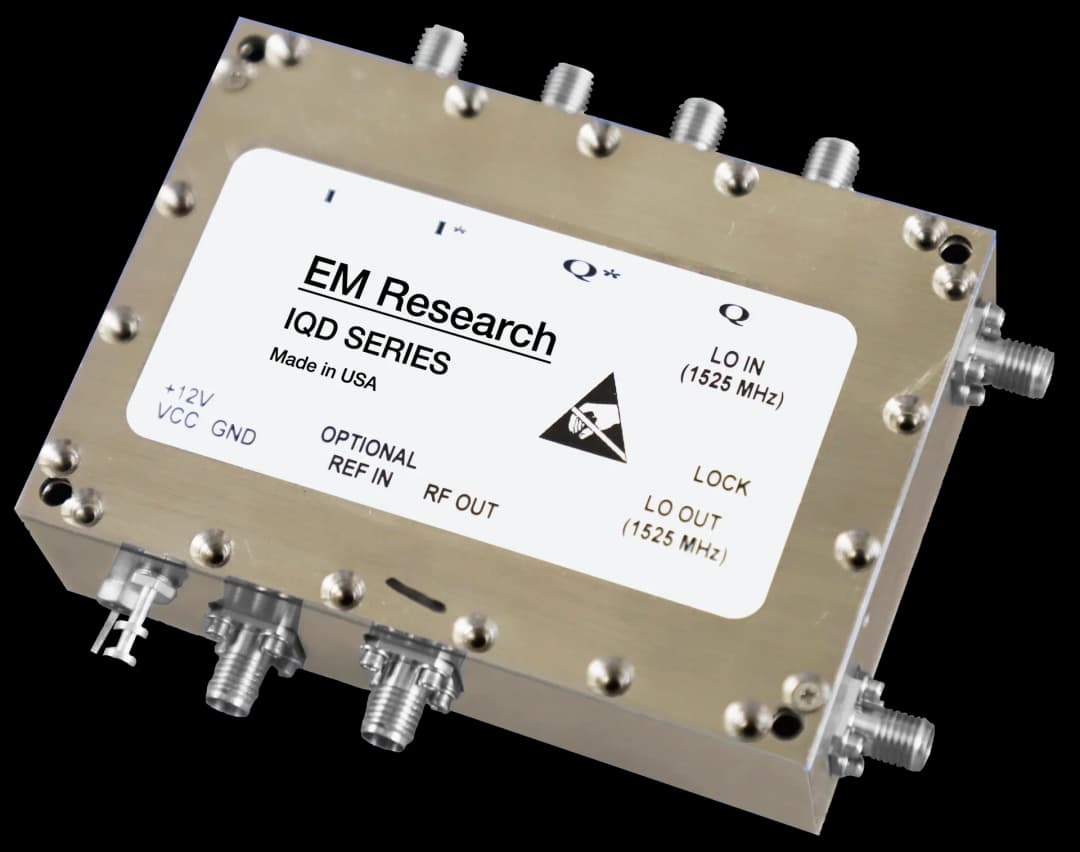

IQD Series
IQ Demodulator
- Capable of receiving RF and LO frequency inputs
- Output from DC to 500 MHz
- Internal low noise oscillator
- Internal reference
- Buffered demodulator
- Balanced IQ
- Optimized for low EVm
- Optional internal Reference Detect Switch (EM Research RDS Series)
- Up to 250 mega-symbols per second
Quick Answers
- Frequency range
- 650 MHz to 1.65 GHz
- Typical use
- all models configurable to requirements.
Series Specifications
| Frequency Range | 650 MHz to 1.65 GHz |
|---|
Models — all models are configurable
| Model ID | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| IQD-1250-02 | 650 MHz | 1.65 GHz | -20 | 5 | -115 | -120 | -125 | +12 | 275 | QuoteSpec Sheet |
- Frequency
- 650 MHz – 1.65 GHz
- Harmonics
- -20 dBc
- Reference
- 5 MHz
- PN @ 1 kHz
- -115 dBc/Hz
- PN @ 10 kHz
- -120 dBc/Hz
- PN @ 100 kHz
- -125 dBc/Hz
- VCC
- +12 V
- ICC
- 275 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
