Products
Frequency Generation

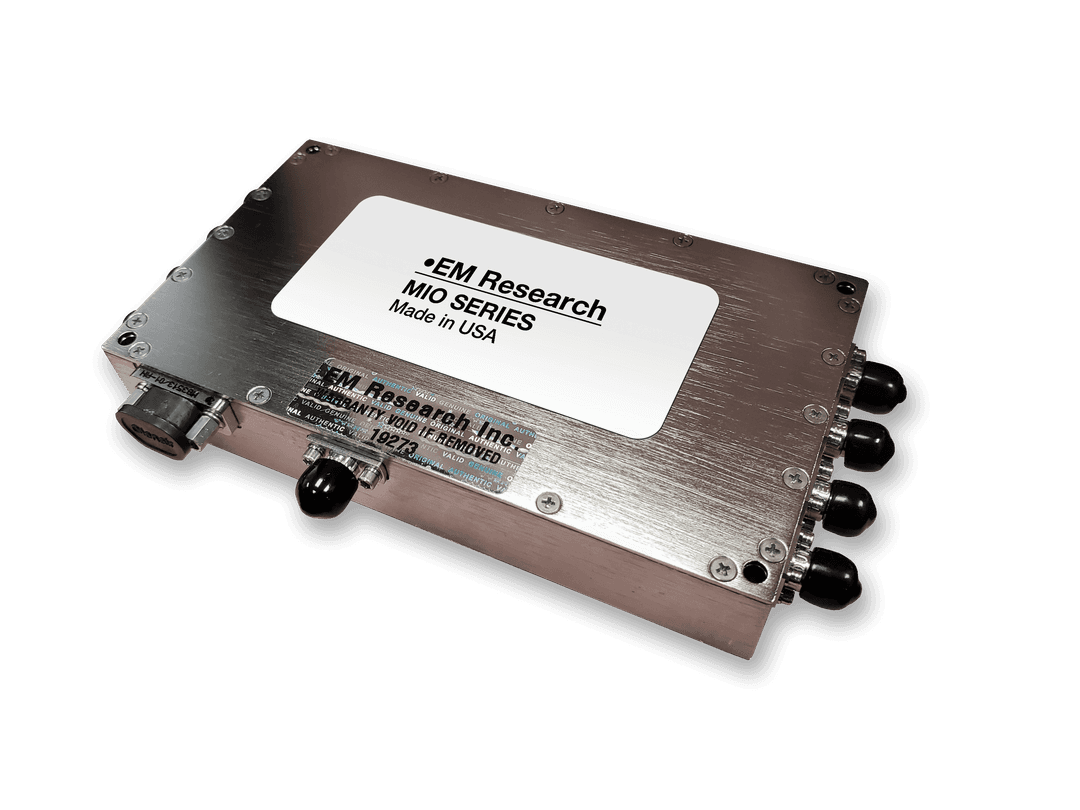

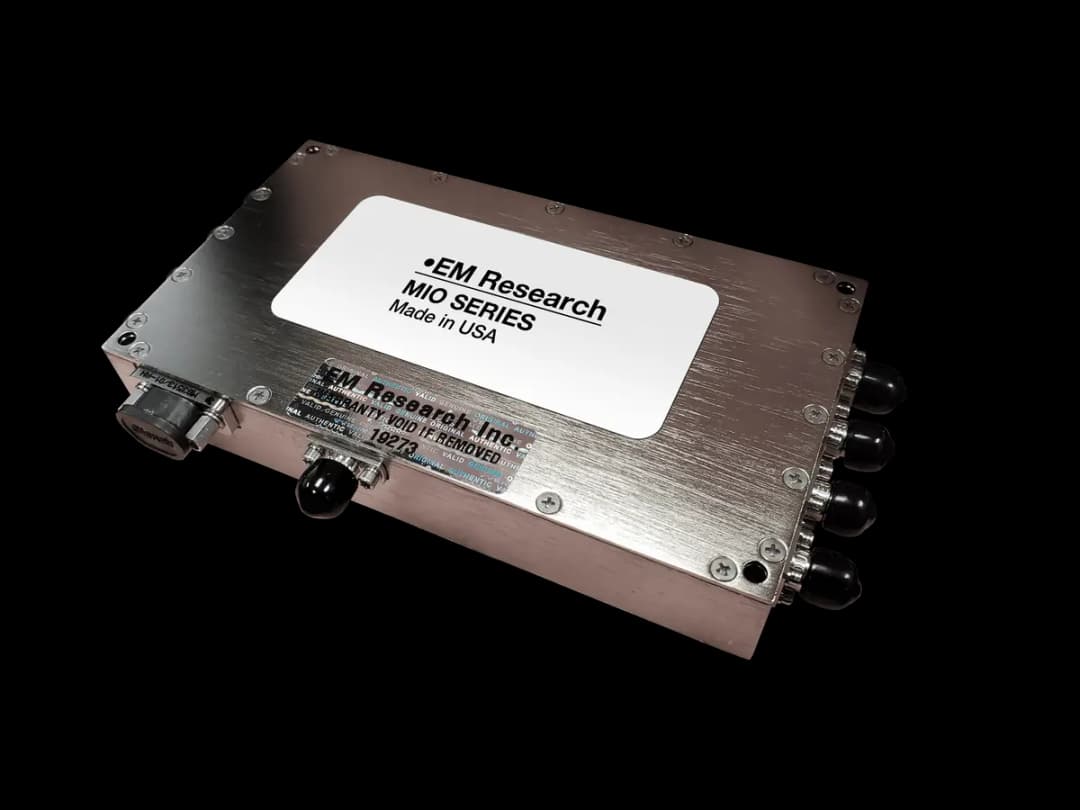

MIO Series
Multiple Independent Output Oscillator
- Connectorized Package
- Up to Eight Outputs Possible
Industries: Aerospace, Communications, Laboratory, Military, Satcom
Quick Answers
- Frequency range
- 9 GHz to 11 GHz
- Package
- 4.50” x 2.50” x 0.800” — Connectorized Package
- Typical use
- Aerospace, Communications, Laboratory, Military, Satcom applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 9 GHz to 11 GHz |
|---|---|
| Harmonics | -20 dBc TYP |
| Spurs | -55 dBc MAX |
| Supply Voltage | +12V |
| Temperature Range | -30 to 70 Operating |
| Internal Reference | 10 MHz |
| Stability | Same as Reference |
| Package Size | 4.50” x 2.50” x 0.800” |
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MIO-11000-xx | 9 GHz | 11 GHz | +16 | -20 | 10 | -75 | -80 | -85 | +12 | 750 | QuoteSpec Sheet |
- Frequency
- 9 GHz – 11 GHz
- Power Out
- +16 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -75 dBc/Hz
- PN @ 10 kHz
- -80 dBc/Hz
- PN @ 100 kHz
- -85 dBc/Hz
- VCC
- +12 V
- ICC
- 750 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
