Phase-Locked Crystal Oscillator
- Frequency range
- 5 MHz – 1.3 GHz
- Package size
- 1.5” x 1.5” x 0.6”
- Connectorized Package
View Series →4 models
Products
Frequency Generation

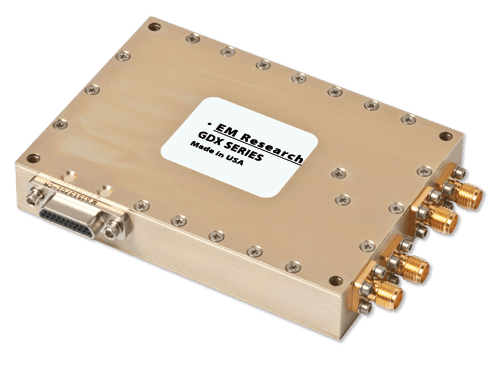

GDX Series
Phase-Locked Crystal Oscillator
- Connectorized Package
- 1 PPS Input from GPS Receiver
- Up to Four Fixed-Frequency RF Outputs
- Optional Loss of Lock Output
- Optional Holdover Alarm Output
- Low Phase Noise
Industries: Communications, Military, Satcom
Quick Answers
- Frequency range
- 10 MHz to 100 MHz
- Package
- 3.5” x 2.5” x 0.6” — Connectorized Package
- Typical use
- Communications, Military, Satcom applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 10 MHz to 100 MHz |
|---|---|
| Bandwidth | Fixed |
| Output | up to +10 dBm |
| Power Variation | 2 minutes @ +25ºC to Lock |
| Phase Noise | <-151 dBc/Hz @ 10 KHz offset (Fout = 100 MHz |
| Harmonics | <-30 dBc |
| Spurs | <-70 dBc |
| Input Level | +5, +8, +12 VDC Current ≤350 mA |
| Supply Voltage | +5, +8, +12 VDC |
| External Reference | 5 to 100 MHz, 1 PPS Reference Input |
| Package Size | 3.5” x 2.5” x 0.6” |
Models — all models are configurable
| Model ID | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| GDX-10-13 | 10 MHz | +10 | -30 | - | -130 | -150 | -154 | +12 | 400 | QuoteSpec Sheet |
| GDX-64-02 | 64 MHz | +3 | -20 | - | -140 | -150 | -150 | +12 | 300 | QuoteSpec Sheet |
| GDX-100-03 | 100 MHz | +13 | -30 | - | -131 | -151 | -154 | +15 | 350 | QuoteSpec Sheet |
- Frequency
- 10 MHz
- Power Out
- +10 dBm
- Harmonics
- -30 dBc
- Reference
- - MHz
- PN @ 1 kHz
- -130 dBc/Hz
- PN @ 10 kHz
- -150 dBc/Hz
- PN @ 100 kHz
- -154 dBc/Hz
- VCC
- +12 V
- ICC
- 400 mA
- Frequency
- 64 MHz
- Power Out
- +3 dBm
- Harmonics
- -20 dBc
- Reference
- - MHz
- PN @ 1 kHz
- -140 dBc/Hz
- PN @ 10 kHz
- -150 dBc/Hz
- PN @ 100 kHz
- -150 dBc/Hz
- VCC
- +12 V
- ICC
- 300 mA
- Frequency
- 100 MHz
- Power Out
- +13 dBm
- Harmonics
- -30 dBc
- Reference
- - MHz
- PN @ 1 kHz
- -131 dBc/Hz
- PN @ 10 kHz
- -151 dBc/Hz
- PN @ 100 kHz
- -154 dBc/Hz
- VCC
- +15 V
- ICC
- 350 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
