Products
Signal Conversion

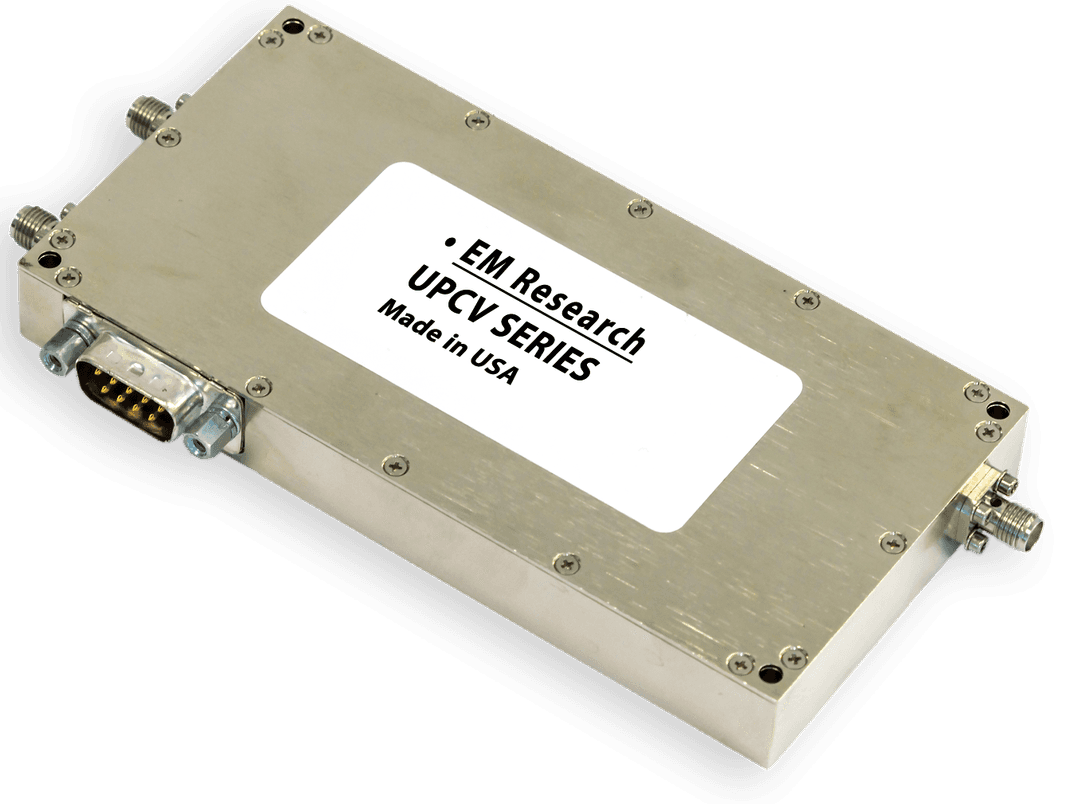

UPCV Series
Channelized Converter
- Connectorized Package
- Wide Choice of Frequency Ranges
- IF to Ka-Band Solutions Available
- Integrated Filters
- Gain Control
- USA, RS232 or SPI Control
- Internal / External References
- Low Power Consumption
- Low Phase Noise
- Low Spurs
Industries: Aerospace, Communications, Satcom
Quick Answers
- Frequency range
- 950 MHz to 2.15 GHz
- Typical use
- Aerospace, Communications, Satcom applications; all models configurable to requirements.
Series Specifications
| Frequency Range | 950 MHz to 2.15 GHz |
|---|
Models — all models are configurable
| Model ID | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UPCV-1450-01 | 950 MHz | 1.45 GHz | +10 | -30 | 10 | -85 | -90 | -110 | +12 | 550 | QuoteSpec Sheet |
| UPCV-2150-02 | 950 MHz | 2.15 GHz | +5 | -20 | 10 | -85 | -90 | -105 | +12 | 600 | QuoteSpec Sheet |
| UPCV-2150-03 | 950 MHz | 2.15 GHz | +10 | -30 | 10 | -85 | -90 | -110 | +12 | 650 | QuoteSpec Sheet |
- Frequency
- 950 MHz – 1.45 GHz
- Power Out
- +10 dBm
- Harmonics
- -30 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -90 dBc/Hz
- PN @ 100 kHz
- -110 dBc/Hz
- VCC
- +12 V
- ICC
- 550 mA
- Frequency
- 950 MHz – 2.15 GHz
- Power Out
- +5 dBm
- Harmonics
- -20 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -90 dBc/Hz
- PN @ 100 kHz
- -105 dBc/Hz
- VCC
- +12 V
- ICC
- 600 mA
- Frequency
- 950 MHz – 2.15 GHz
- Power Out
- +10 dBm
- Harmonics
- -30 dBc
- Reference
- 10 MHz
- PN @ 1 kHz
- -85 dBc/Hz
- PN @ 10 kHz
- -90 dBc/Hz
- PN @ 100 kHz
- -110 dBc/Hz
- VCC
- +12 V
- ICC
- 650 mA
Request Configuration
This is a small sample of our models — all are configurable. If you don’t see the frequency you need, request a configuration and we’ll get back to you within 1 business day.
